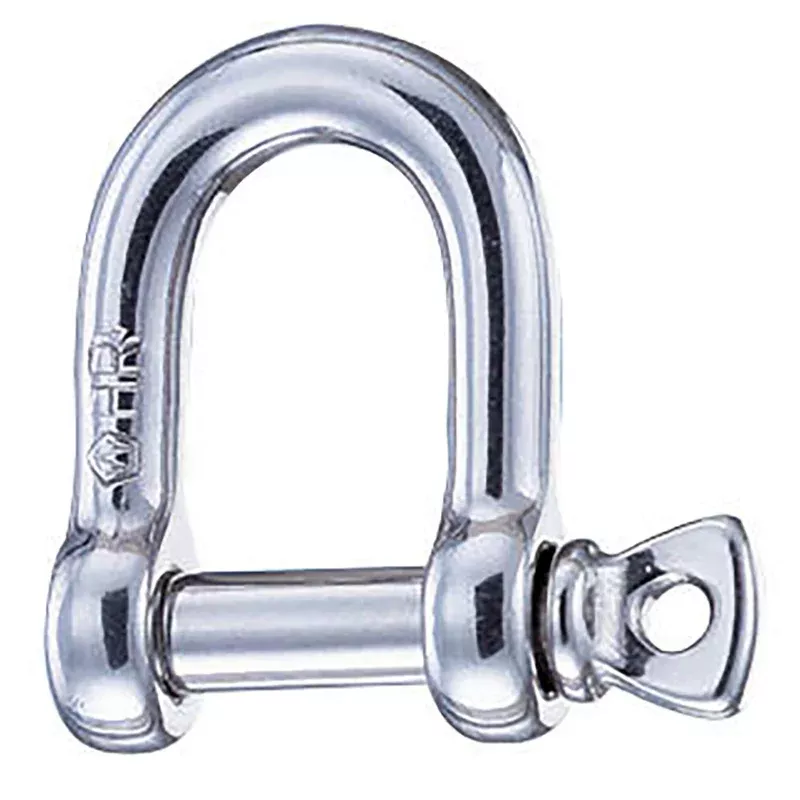

Wichard HR D Shackle – 20mm Diameter – 25/32

Wichard HR D Shackle – 20mm Diameter – 25/32

Original price was: $98.26.Current price is: $64.51.

21 in stock

SKU: ZWJAB555368 Category:

Description

HR D Shackle – 20mm Diameter – 25/32″Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head …
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 19400 / (kg) 8800
  • WLL: (lb) 12340 / (kg) 5600
  • Breaking load: (lb) 61720 / (kg) 28000
  • Weight: (lb) 1.896 / (g) 860

Dimensions:

  • A: (inch) 2 3/4″ / (mm) 70
  • B: (inch) 1 37/64″ / (mm) 40
  • D diameter: (inch) 25/32″ / (mm) 20

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual Quick Guide (pdf)
