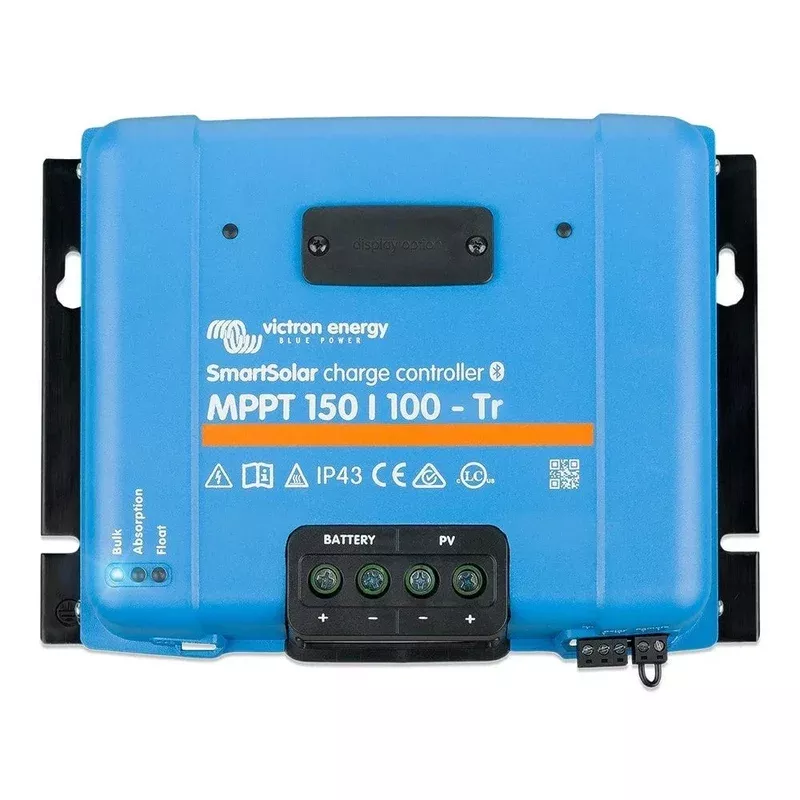

Victron Energy SmartSolar MPPT Charge Controller 150V 100A (SCC115110211)

Description

The Victron Energy SmartSolar MPPT Charge Controller 150V 100AMP (SCC115110211) from Nomadic Supply Company® delivers high-power solar charging for large installations.SmartSolar MPPT Charge Controller – 150V – 100AMP

Victron Energy SmartSolar MPPT Charge Controller 150V 100A (SCC115110211) Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronize SmartSolar Charge Controllers.
• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
• Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
• Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%.
• Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
• Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
• Internal temperature sensor Compensates absorption and float charge voltage for temperature.
• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a Victron BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices
• Remote on-off To connect for example to a VE.BUS BMS.
• Programmable relay Can be programmed to trip on an alarm, or other events

Victron Energy SmartSolar MPPT Charge Controller 150V 100A (SCC115110211) Documents:

Victron Energy SmartSolar MPPT Charge Controller 150V 100A (SCC115110211) Warranty InfoVictron Energy SmartSolar MPPT Charge Controller 150V 100A (SCC115110211) Documentation
