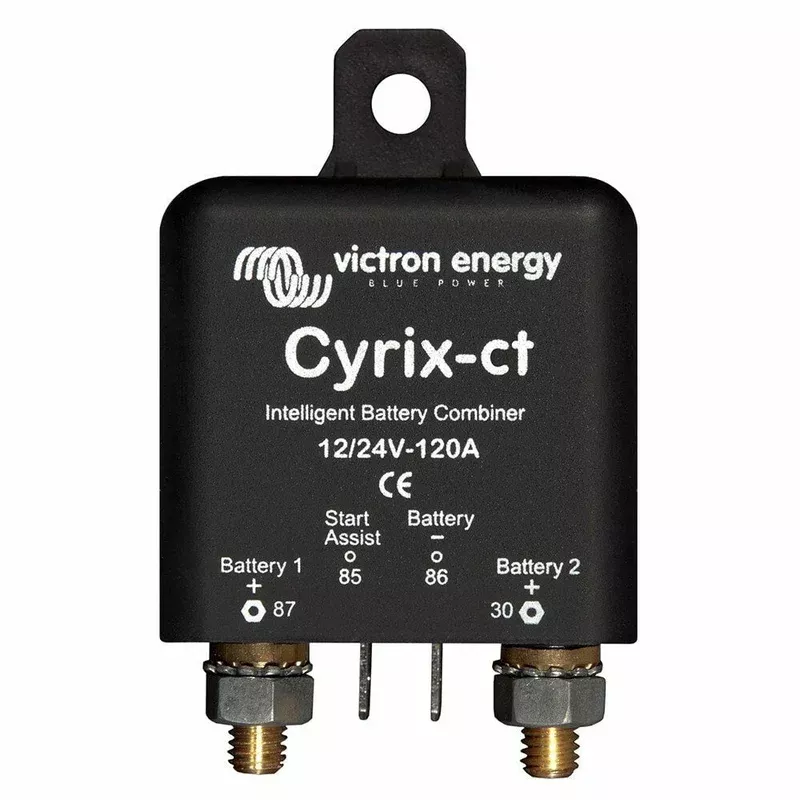

Victron Energy Combiner 12/24V-120A Cyrix-CT Intelligent Combiner Microprocessor Controlled (CYR010120011)

Description

The Victron Energy Combiner 12/24V-120A Cyrix-CT Intelligent Combiner Microprocessor Controlled (CYR010120011) from Nomadic Supply Company® intelligently combines battery banks with microprocessor control.The Cyrix Battery Combiner is a microprocessor controlled heavy-duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.Victron Energy Combiner 12/24V-120A Cyrix-CT Intelligent Combiner Microprocessor Controlled (CYR010120011) Features:

• Microprocessor Controlled. Intelligent voltage sensing automatically connects and disconnects batteries based on precise voltage thresholds.
• 120A Continuous Rating. Handles up to 120 amps of continuous current for reliable battery combining in demanding dual-battery systems.
• Automatic Battery Combining. Connects batteries during charging and isolates them at rest to prevent one bank from discharging the other.
• Bi-Directional Operation. Monitors voltage on both sides and can combine batteries regardless of which side reaches the engage voltage first.
• LED Status Indication. Built-in LED indicates relay status for easy system diagnostics during installation and operation.

Victron Energy Combiner 12/24V-120A Cyrix-CT Intelligent Combiner Microprocessor Controlled (CYR010120011) Documents:Victron Energy Combiner 12/24V-120A Cyrix-CT Intelligent Combiner Microprocessor Controlled
