Description

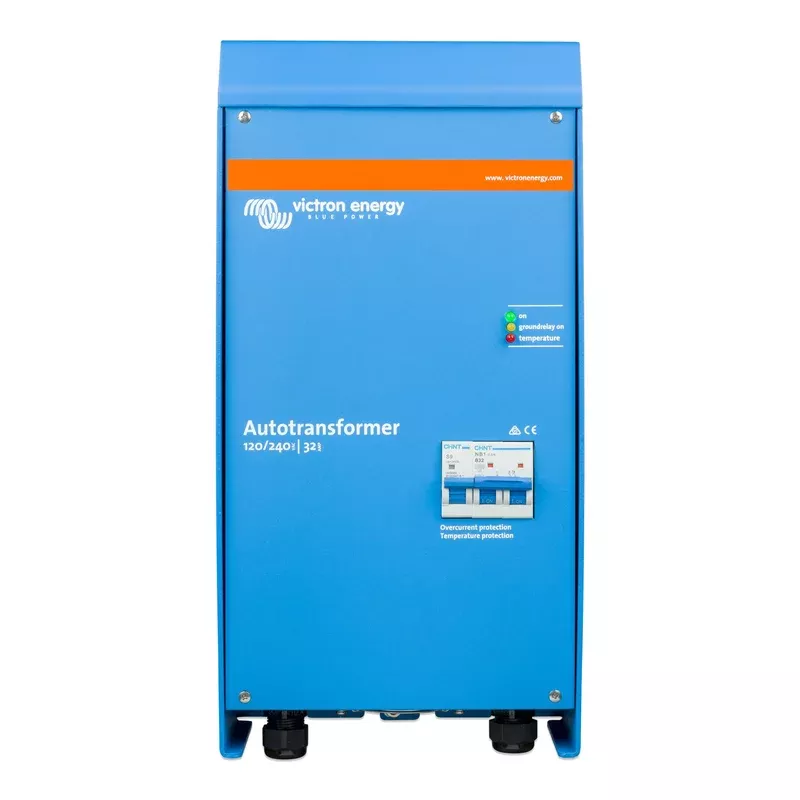

The Victron Energy Autotransformer 120/240VAC-32A Transfer Switch (ITR000100001) from Nomadic Supply Company® is a shore power isolation transformer with auto-switching 115V/230V capability. It features toroidal wound technology, soft start circuitry, and automatic voltage compensation.
Victron Energy Autotransformer 120/240VAC-32A Transfer Switch (ITR000100001) Features:
- Auto-switching 115V/230V input and output
- 3600W power capacity (example model)
- Toroidal wound technology for efficiency and quiet operation
- Soft start circuitry prevents shore circuit breaker tripping
- 1:1.05 voltage ratio for 5% output boost
- Compensates for shore power voltage drops
- Prevents galvanic corrosion
- Ensures electrical safety for marine vessels
- Multiple power ratings available (2000VA, 3600VA, 7000VA)
- Automatic input detection and switching
Victron Energy Autotransformer 120/240VAC-32A Transfer Switch (ITR000100001) Includes:
- Isolation transformer unit
- Input and output power cables
- Soft start circuit protection
- Configuration jumpers and documentation
- Installation hardware and mounting brackets
- User manual and technical specifications
- Warranty documentation
Victron Energy Autotransformer 120/240VAC-32A Transfer Switch (ITR000100001) Specifications:
| Power Rating Example | 3600W |
| Input Voltage Range | 185V – 250V |
| Input Voltage Auto-Switching | 115V or 230V |
| Output Voltage Range | Auto-selected 115V or 230V |
| Output Voltage Boost | 1:1.05 ratio (+5% boost) |
| Technology | Toroidal wound |
| Soft Start | Yes – prevents breaker trips |
| Voltage Compensation | Automatic boost for line drop |
| Available Power Options | 2000VA, 3600VA, 7000VA |
| Configuration | Jumper selectable output voltage |
| Application | Marine shore power isolation |
| Model Example | ITR050362041 (3600W) |
| Dimensions Example | 14.25″ H x 10.16″ W x 8.58″ D |
Victron Energy Autotransformer 120/240VAC-32A Transfer Switch (ITR000100001) Documents:
Victron Energy Autotransformer 120/240VAC-32A Transfer Switch (ITR000100001) Owner’s Manual
