Viaggio Pontoon Boat Dash Panel 206304 | Lago Veethree Gauges Black

Description

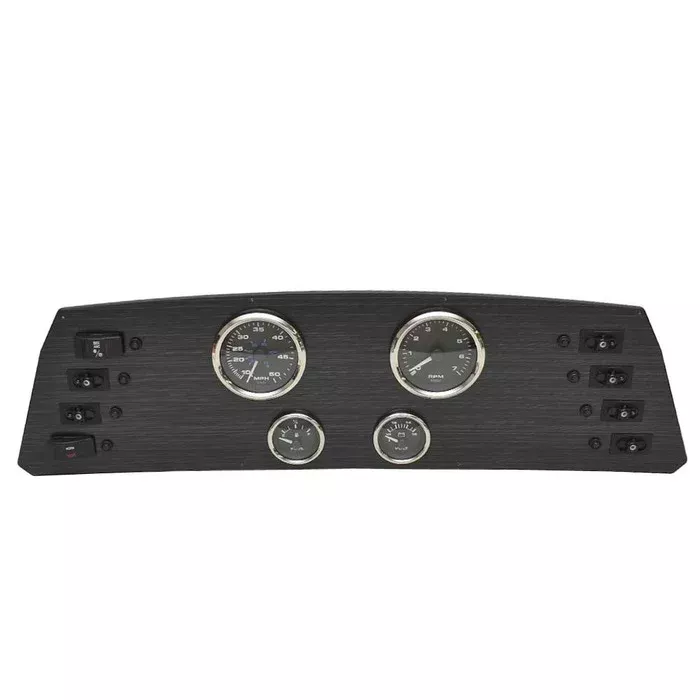

Boat part number 1116415 is a new dash panel with gauges for Lago model Viaggio Pontoon Boats, part number 206304 . Manufactured by IMP, part number 503072 .

This dash panel is constructed out of brushed black plastic with a satin gloss finish. It measures approximately 28 1/4″ W x 8″ H overall.

This panel has (4) pre-installed Black Premier gauges from Veethree. Each clear halogen illuminated gauge has a domed lens, stainless steel bezel, black face, white needle, and white graphics. They feature red backlighting.

This panel features the following gauges:

• Speedometer | P/N: 65639SEF | pitot connection
• Tachometer | P/N: 84293SEF | Gasoline | 4/6/8 cylinder and 2/3/4/5/6 pole
• Fuel Level | P/N: 65632SEF | 33.5 – 240 ohms
• Volt Meter | P/N: 65665SEF

This panel features the following pre-installed rocker switches:

• (1) Navigation/Anchor Lights | On/Off/On
• (1) Horn | Momentary On/Off
• (5) No Cover/Actuator | On/Off
• (1) No Cover/Actuator | Momentary On/Off/Momentary On

This panel also includes the following:

• (8) Push-to-Reset Breaker Switches

Note: There are (6) rocker switches that do not include a cover/actuator.

Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.

Specifications:

• Boat Manufacturer: Viaggio
• Model: Lago
• Part Number: 206304
• Part Manufacturer: IMP
• Part Number: 503072
• Material: Plastic
• Color: Brushed Black
• Finish: Satin Gloss
• Overall Dimensions: 28 1/4″ W x 8″ H
• Fuel: Gasoline
• Set Up For: 4/6/8 cylinder and 2/3/4/5/6 pole
