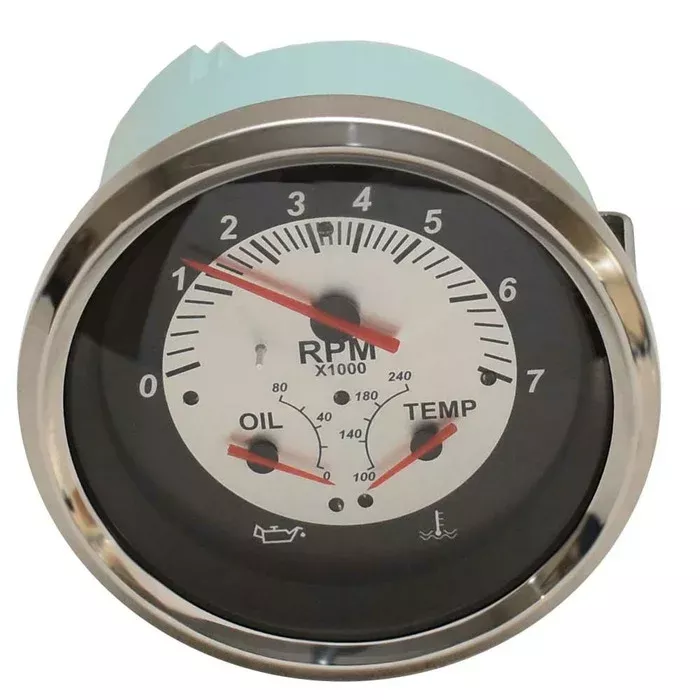

Veethree Boat Multifunction Gauge 781184PDFB | Oversized 4 1/4 Inch

Description

Boat part number 1109561 is a new oversized multifunction gauge from Veethree, part number 781184PDFB . Commonly used on Rinker Boats, part number 8959969 , but may be used on other boats.

This multifunction gauge has the following functions:

• Tachometer | 7000 RPM
• Oil Pressure | 0 – 80 Bar
• Water Temperature | 100 – 240 F°

This clear halogen illuminated gauge features a domed lens, black and silver colored face, silver colored bezel, black and white lettering, numerals and accents, with red needles.

Measures approximately 4 7/8″ OD (including bezel) x 3 3/4″ D overall. Requires an approximate 4 1/4″ Dia. cutout. Hosts (1) 8-pin male Deutsch and (4) threaded stud connections. Set up for 4/6/8 Cyl and 2/3/4/5/6 Pulse engines.

Mounting bracket included.

Specifications:

• Boat Manufacturer: Rinker Boats
• Part Number: 8959969
• Part Manufacturer: Veethree
• Part Number: 781184PDFB
• Colors: Black / Silver (Face) | Silver (Bezel)
• Overall Dimensions: 4 7/8″ OD x 3 3/4″ D
• Cutout: 4 1/4″ Dia.
• Connections: (1) 8-Pin Male Deutsch / (4) Threaded Stud Connections
• Fuel: Gasoline
• Set up for 4/6/8 Cyl and 2/3/4/5/6 Pulse Engines

Pigtail connector / harness not included.
