Name: Supra Boat Dash Panel with Harness 115193 | SA/SC BH Electronics (Kit)
Brand: durablemarinebattery.com
SKU: GUOPX305931
Price: 44.31 USD
Availability: InStock

Description

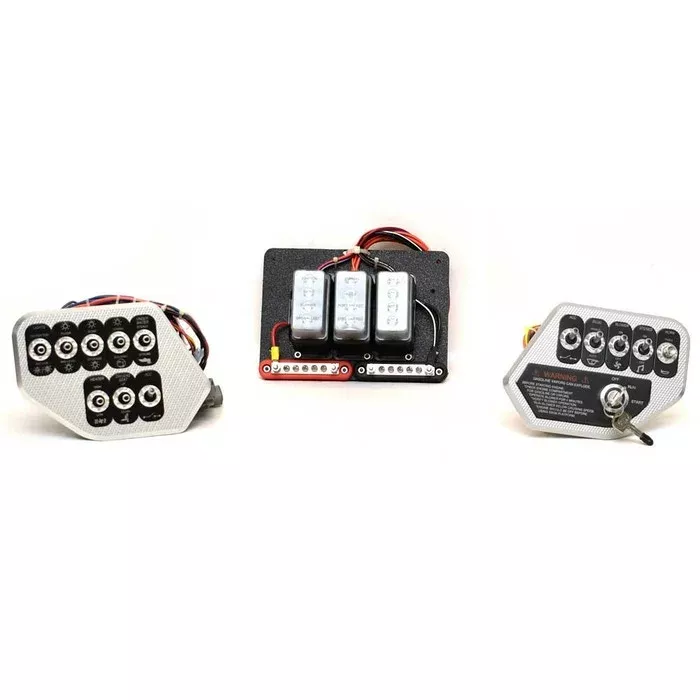

Boat part number 7600821 is a new OEM dash panel kit with wire harness for a SA/SC model Supra, part number 115193 . Manufactured by BH Electronics, part number SC151K02311 .This kit consists of the following:

(1) SC131P03050 – Ignition Switch Panel
(1) SC151P03289 – Accessory Switch Panel
(1) SC151P03290 – Breaker Panel
(1) SC151C049 – Dash Harness

Ignition Switch PanelThis ignition switch panel is constructed out of aluminum, and measures approximately 7 1/2″ L x 5 3/8″ H x 4 1/4″ D overall. Mounts with (11) 1/8″ Dia. threaded mounting holes and (2) 3/16″ Dia. mounting holes. Uses (1) 12-pin female and (1) insulated male spade connections.

(2) Keys included.

This panel features the following:

(1) 3-Position Inboard Ignition Switch
(1) Push Button Horn Switch
(1) ON/OFF Stereo Toggle Switch
(1) ON/OFF Blower Toggle Switch
(1) ON/OFF Bilge Toggle Switch
(1) ON/OFF ACC Toggle Switch

Accessory Switch PanelThis accessory switch panel is constructed out of aluminum, and measures approximately 7 1/2″ L x 5 3/8″ H x 3″ D overall. Mounts with (11) 1/8″ Dia. threaded mounting holes and (2) 3/16″ Dia. mounting holes. Uses (1) 15-pin male, (1) 8-pin female Deutsch, (1) 4-pin male Deutsch, (1) 3-pin male Deutsch, and (1) insulated male spade connections.

This panel features the following:

(1) MOMENTARY ON/OFF/MOMENTARY ON Nav and Anchor Lights Toggle Switch
(1) MOMENTARY ON/OFF/MOMENTARY ON Floor and Mid-level Lights Toggle Switch
(1) MOMENTARY ON/OFF/MOMENTARY ON Dome and Storage Lights Toggle Switch
(1) MOMENTARY ON/OFF/MOMENTARY ON Tower and Docking Lights Toggle Switch
(1) MOMENTARY ON/OFF/MOMENTARY ON Underwater Steady and Strobe Toggle Switch
(1) MOMENTARY ON/OFF/MOMENTARY ON High and Low Heater Toggle Switch
(1) MOMENTARY ON/OFF/MOMENTARY ON Up and Down Driver Seat Toggle Switch
(1) ON/OFF ACC Toggle Switch

Breaker PanelThis breaker panel is constructed out of black plastic, and measures approximately 8 1/2″ L x 6 1/8″ H x 3 3/8″ D overall. Mounts with (5) 3/16″ mounting holes set along the perimeter. Uses (1) 15-pin female and (3) insulated female bullet connections. Features (12) labeled push button breaker switches under clear plastic covers.

Dash HarnessThis wire harness uses (7) 12-Pin female Deutsch, (6) insulated female bullet, (2) 15-pin female, (2) 15-pin male, (2) 12-pin male, (2) female spade, (1) 23-pin red, (1) 8-pin male Deutsch, (1) 4-pin female Deutsch green, (1) 4-pin female Deutsch orange, (1) 3-pin female Deutsch, (1) 2-pin male Deutsch, and (1) 2-pin female Deutsch. Features (1) 12V Input 5V/2.1A Output Dual USB-A Receptacle.
