Supra Boat Dash Panel 108128 | 21V Woodgrain (Kit)

Description

Boat part number 7600002 is a new dash panel kit for 2008, 21V model Supra Boat, part number 108128 . Manufactured by BH Electronics, part number SC081K01747 .

These panels are constructed out of black and silver faux woodgrain marine grade plastic with a glossy finish.

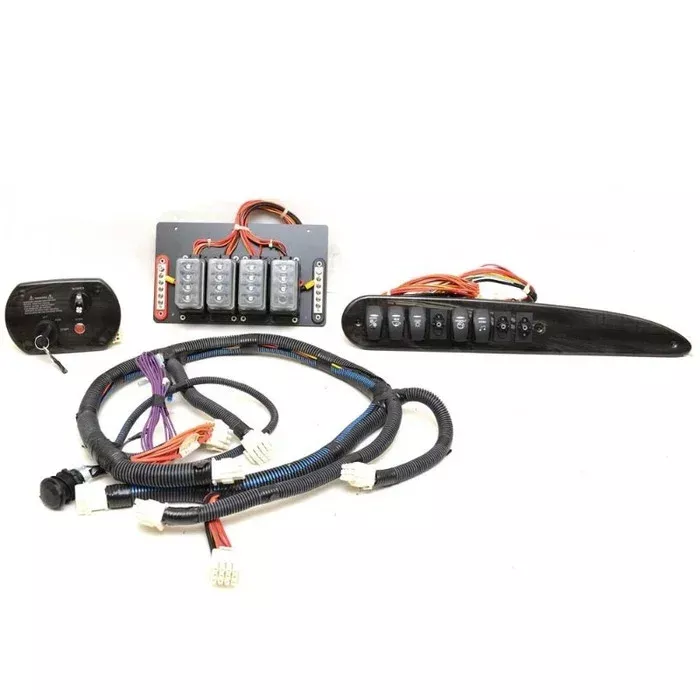

This kit includes the following pieces:

• (1) Ignition Panel – Measures approximately 6 1/2″ W x 4 1/4″ H overall
• (1) Breaker Panel – Measures approximatley 10 1/2″ W x 6 1/8″ H overall, mounts with (4) 3/16″ Dia. mounting holes.
• (1) Rocker Switch Panel – Measures approximately 19 3/4″ W x 3 1/8″ W overall
• (1) Wiring Harness

Ignition Panel features the following:

• (1) 3-position ignition switch with (2) keys included
• (1) Illuminated ON/OFF Blower turn-style switch
• (1) Red Horn Push Button
• (1) 8-pin female connection

Breaker Panel features the following connections:

• (1) 7-pin male
• (1) 12-pin female
• (1) Single-pin female terminal

Switch Panel features the following:

• (1) Illuminated ON/OFF/ON Nav/Anc Lights rocker switch
• (1) Illuminated ON/OFF Bilge rocker switch
• (1) Illuminated ON/OFF Court Lights rocker switch
• (1) Illuminated ON/OFF Docking Lt rocker switch
• (1) Illuminated ON/OFF Stereo rocker switch
• (3) Rocker Switch Bodies, in need of switch plates
• (1) 8-pin female connection
• (1) 11-pin female connection
• (1) 13-pin female connection

Wiring Harness has the following connections:

• (2) 12-pin male
• (2) 11-pin male
• (2) 8-pin male
• (1) 7-pin female
• (1) 3-pin Deutsch male
• (3) Single-pin female terminals
• (2) Single-spade female terminals
• (1) 12 Volt Receptacle

Specifications:

• Boat Manufacturer: Supra
• Model: 21V
• Year: 2008
• Part Number: 108128
• Part Manufacturer: BH Electronics
• Part Number: SC081K01747
• Material: Plastic
• Color: Black / Silver Faux Woodgrain
• Finish: Glossy
