Description

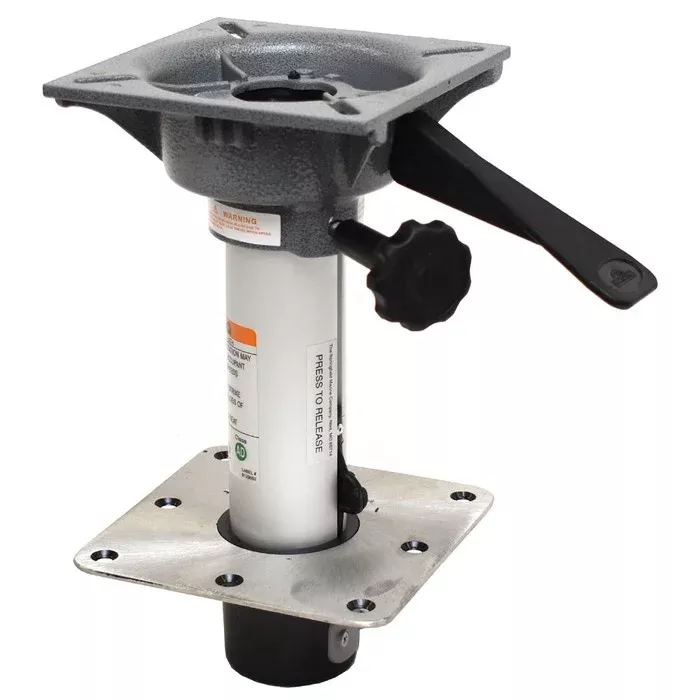

Boat part number 1116679 is a new seat pedestal from Springfield.
Included in box:3300754-1 | Plug-In Base3310710-L | 10″ Plug-In Post3100031-L1 | Swivel Mount
This seat pedestal is constructed out of a stainless steel base and mount with an aluminum post. It measures approximately 12 1/2″ H x 6 5/8″ W x 6 5/8″ D overall when fully assembled. The base mounts with (8) 3/8″ Dia. holes in a 3 1/4″ Dia. cutout. The swivel uses a standard 5″ x 5″ bolt pattern with a 2 3/8″ Dia. post hole.
Specifications:
- Part Manufacturer: Springfield
- Material: Stainless Steel / Aluminum
- Color: Gray / Silver
- Overall Dimensions: 12 1/2″ H x 6 5/8″ W x 6 5/8″ D
- Post Dimensions: 10″ H x 2 3/8″ Dia.
- Below Deck Cutout: 3 1/4″ Dia.
- Mounts: (8) 3/8″ Dia. Holes | 5″ x 5″ Swivel
