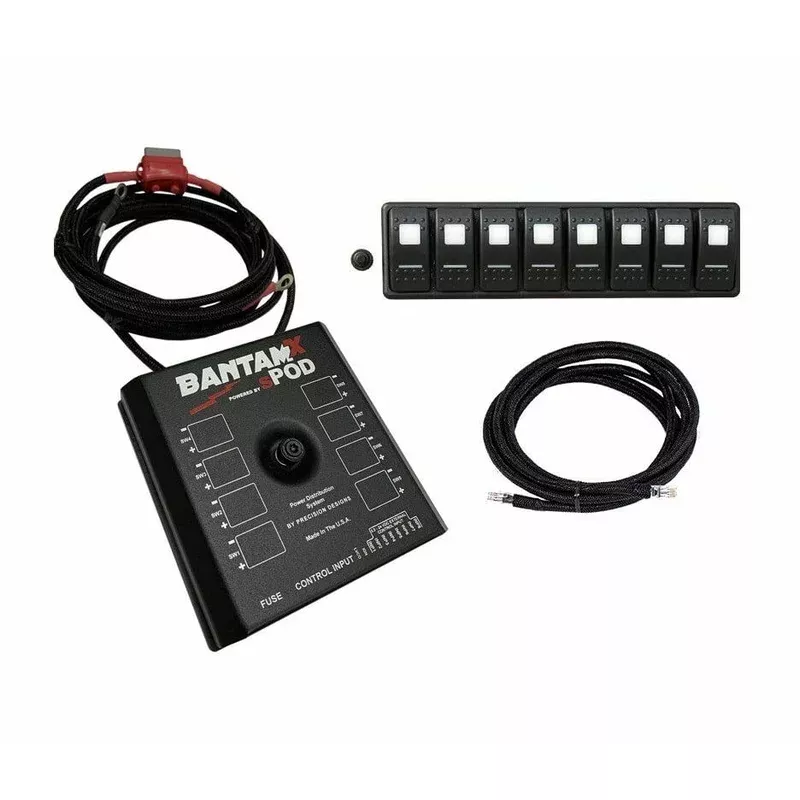

sPOD BantamX Modular 8-Switch Panel w/ Red LED 84″ Battery Cables (BX-MOD-84-R)

Description

The sPOD BantamX Modular 8-Switch Panel w/ Red LED 84″ Battery Cables (BX-MOD-84-R) fromNomadic Supply Company® will save hours of wiring and installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories.Due to the small footprint of The sPOD BantamX Modular 8-Switch Panel, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle’s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.

sPOD BantamX Modular 8-Switch Panel w/ Red LED 84″ Battery Cables (BX-MOD-84-R) Features:

• BantamX Modular w/ Red LED with 84 Inch battery cables
• Fully programmable, digital controlled system
• 8 circuits rated at 30 amps at 12.5 VDC per circuit
• 16-position terminal block (easily attach accessories)
• 2 controller ports (RJ45) for Ethernet cables
• Integrated low voltage cutoff (LVCO) battery protection w/ optional override
• One ATM mini-style fuse for LVCO protection and reset
• Failsafe self-healing fault protection system (from 1.5 to 30amps)
• Current-sensing MOSFETs controlled by a microprocessor (no fuses and relays)
• 50amp auto-resetting circuit breaker
• Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
• Operates on 12V or 24VDC
• 8-position input terminal block for controlling outputs
• Built-in Bluetooth capabilities for remote control
• Protection against: overheating, over-current, shorts, reverse polarity and field collapse
• Ignition control and safety lock-out for switches 1 and 2 (optional)
• Up to 4 BantamX units can be daisy chained and controlled by one Touchscreen
• On-demand wireless software updates/upgrades

Hardware:

• Powder coated steel base w/ Built-in hardware
• Silicone gasket for weatherproofing
• Aluminum lid
• Vehicle specific mounting options
• Robust insulated base and cover

Features Available Through sPOD Mobile App (free):

• Each switch can be programmed for:
• Dimming
• Strobe
• Flash
• Momentary
• Switch Linking
• On Road and Off Road mode of operation

The following features are only available through the purchase of our Pro-Series App:

• Circuit timers
• Switch lockout
• Initial startup current for each circuit is raised to 65amps for 5 seconds
• Program any circuit to be always on while still maintaining fault protection
• Option to disable deep sleep mode
• Selectable auto restart after circuit shuts down from over current/short
• Programmable Current Limiting (in 2amp increments up to 30amps)
• Selectable auto restart for current limiting shut down
• Selectable Latch or Momentary actions for inputs
• Programmable ignition control for all 8 circuits
• Variable strobe function to create custom flash/strobe patterns

External Controller Options (not included with system and can only be used in conjunction with an sPOD controller):

• Third party switches
• Computers
• Arduino
• Raspberry Pi
• Alpine Audio systems KAC-001 head unit controller
• Sensors, thermostats, pressure switches, fan controllers and more

Switch Panel:

• Switch panel with eight dual lit LED Red switches (installed and pre-wired)
• All wires are wrapped in high-temp abrasion resistant nylon braided sleeving.
• Comes with a 10 foot CAT-6 Ethernet, can be extended up to 25-feet from BantamX)
• Each switch has 2 programmable modes: strobe or flash
• Aluminum panels are formed, welded and powder-coated
• Carling Technologies Contura switches (certified to IP66/68 – marine/harsh environment)
• Controlled lower pilot light (push button)
• Custom laser-etched rockers are available
• Ability to daisy chain panels for remote operations (ie: panel in cab and panel at rear of truck)
• Auto safe system shutdown when panel is unplugged
• Can run in conjunction with another 8-Switch panel, HD and Touchscreen
• Two RJ45 ports available integrated into the CAN-Bus controller
