Description

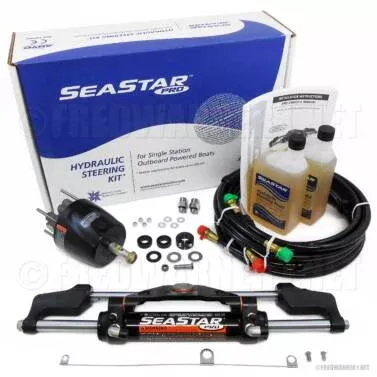

New SeaStar Solutions HK7500A-3 SeaStar Pro hydraulic outboard steering system with SeaStar Pro 24ft hose kit.
Features
- 4.25 Turns Lock-to-Lock (2.0 cu. in. displacement helm)
- Standard 3/4″ Tapered Keyed Steering Shaft (threaded end of steering shaft is 5/8″-18UNF)
- Patented No FeedBack™ (NFB) Lock Valves
- Exceeds NMMA and ABYC Standards
Works ForThe SeaStar Pro is specifically designed for high-performance and fast boats, especially those exceeding 60 mph. Suitable for single outboards up to 350 HP. The SeaStar Pro requires a 3″ (76mm) cut-out hole in the dash and a minimum 21″ (534mm) splashwell width.
Cylinder/RamThe included HC6345-3 Pro cylinder is suitable for most outboards. Use the application guide in the product images to double-check that it is compatible.
HosesThis SeaStar Pro kit comes with a 24 foot hose kit, part number HO5724. If you’re unsure what length you need, use the measuring guide in the product images. For different lengths go here.
| Part Number | Qty | |
|---|---|---|
| Helm | HH5770-3 | 1 |
| Cylinder | HC6345-3 | 1 |
| Hose Kit | HO5724 | |
| Fluid/Oil | HA5430H | 2 quarts |
| Filler Kit | HA5438 | 1 |
| Instructions | 1 |
