SeaStar HK6400TS-3 Tilt Hydraulic Steering Kit w/ 12ft Hose HO5112 Outboard Boat

Description

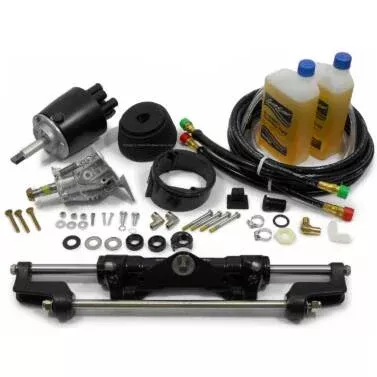

New SeaStar Solutions HK6400TS-3 SeaStar Tilt hydraulic outboard steering system with SeaStar HO5112 12ft hose kit.

Features

• 5 Turns Lock-to-Lock (1.7 cu. in. displacement helm)
• Standard 3/4″ Tapered Keyed Steering Shaft (threaded end of steering shaft is 5/8″-18UNF)
• Patented No FeedBack™ (NFB) Lock Valves
• Exceeds NMMA and ABYC Standards

Works ForBoats up to 60 mph with single outboards up to 300 HP or twin outboards up to 450 hp (non-counter rotating) / 600 hp (counter rotating). Twin engine applications require a tie bar kit. High performance boats, top speeds above 60 mph, fast bass boat, or boats with dual-cable steering will require the SeaStar Pro kit. The SeaStar requires a 3″ (76mm) cut-out hole in the dash and a minimum 21″ (534mm) splashwell width.

Cylinder/RamThe HC5345-3 cylinder is suitable for most outboards. Use the application guide in the product images to double-check what cylinder your outboard requires. If your outboards needs the HO5090 spacer kit, you can find it here.

HosesThis SeaStar kit comes with a 12 foot hose kit, part number HO5112. If you’re unsure what length you need, use the measuring guide in the product images. For different lengths go here.
