SeaStar HK6400A-3 18ft Hydraulic Outboard Steering HO5118 HK6318A-3 Kit Teleflex

Description

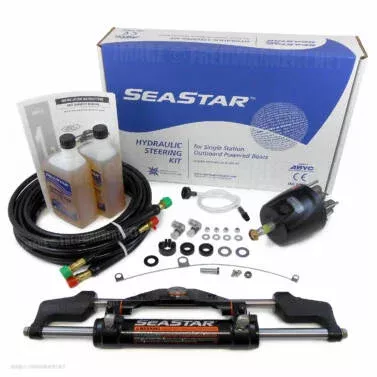

New SeaStar Solutions HK6400A-3 SeaStar hydraulic outboard steering system with SeaStar HO5118 18ft hose kit (kit part number HK6318A-3).

Features

• 5 Turns Lock-to-Lock (1.7 cu. in. displacement helm)
• Standard 3/4″ Tapered Keyed Steering Shaft (threaded end of steering shaft is 5/8″-18UNF)
• Patented No FeedBack™ (NFB) Lock Valves
• Replaces and Supersedes Teleflex Marine SeaStar HK6400A and HK6400
• Exceeds NMMA and ABYC Standards

Works ForBoats up to 60 mph with single outboards up to 300 HP or twin outboards up to 450 hp (non-counter rotating) / 600 hp (counter rotating). Twin engine applications require a tie bar kit. High performance boats, top speeds above 60 mph, fast bass boat, or boats with dual-cable steering will require the SeaStar Pro kit. The SeaStar requires a 3″ (76mm) cut-out hole in the dash and a minimum 21″ (534mm) splashwell width.

Cylinder/RamThe HC5345-3 cylinder is suitable for most outboards. Use the application guide in the product images to double-check what cylinder your outboard requires. If you need a cylinder other than the HC5345-3, find the SeaStar kit that comes with it here: HC5347-3, HC5348-3, or HC5358-3. If your outboards needs the HO5090 spacer kit, you can find it here.

HosesThis SeaStar kit comes with a 18 foot hose kit, part number HO5118. If you’re unsure what length you need, use the measuring guide in the product images. For different lengths go here.

For the tilt helm SeaStar kit, go here.
