Sea Ray Boat Dash Switch Panel 2331870-B | 10 Button Carbon Fiber PORT

Description

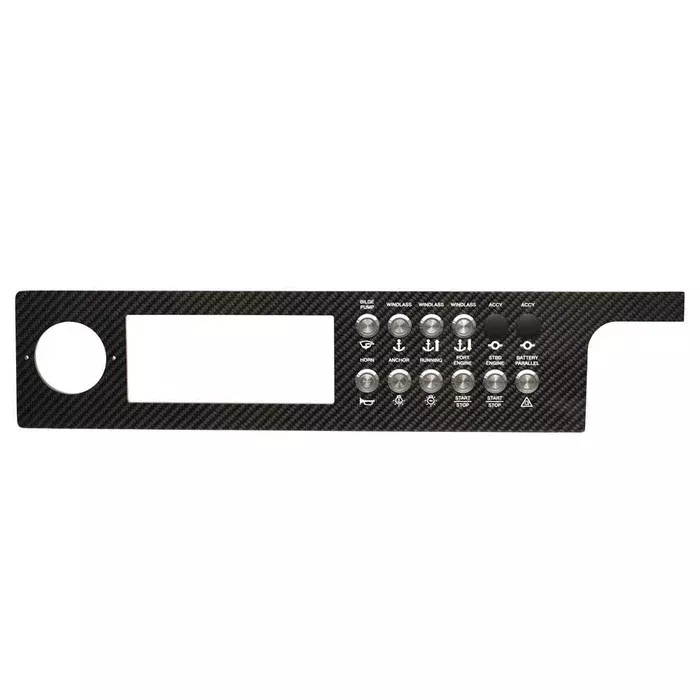

Boat part number 1108292 is a new port dash switch panel for Sea Ray Boats, part number 2331870-B .

This dash switch panel is constructed out of black carbon fiber with a glossy finish. Measures approximately 24 1/4″ W x 5″ H and mounts with (8) threaded mounting bolts. Features (1) 2 5/8″ Dia. and (1) 7 1/2″ W x 3 1/4″ H cutout.

This panel features the following illuminated push-button switches:

• Bilge Pump
• Windlass
• Windlass Up
• Windlass Down
• (2) Accessory (Plugged)
• Horn
• Anchor Lights
• Running Lights
• Port Engine START/STOP
• Starboard Engine START/STOP
• Parallel Switch

Features the following connections:

• (1) 4-spade male
• (1) 10-spade female
• (2) 2-pin female Deutsch
• (2) 3-spade female
• (1) 3-pin female Deutsch
• (1) 3-pin male Deutsch
• (2) 2-spade male

Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.

Specifications:

• Boat Manufacturer: Sea Ray
• Part Number: 2331870-B
• Part Manufacturer: Unavailable
• Part Number: 740115043
• Material: Carbon Fiber
• Color: Black
• Finish: Glossy
• Overall Dimensions: 24 1/4″ W x 5″ H
• Mounts: (8) threaded bolts
