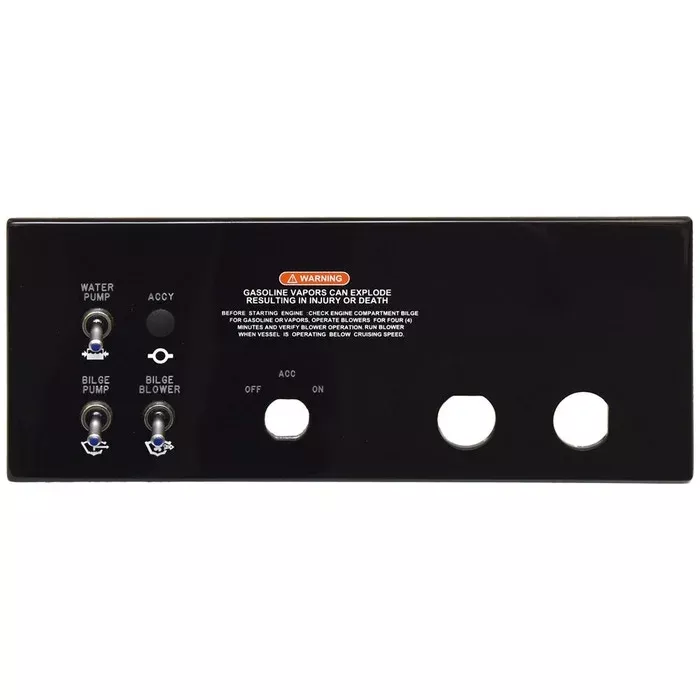

Sea Ray Boat Dash Panel 2315223 | 2019 SDX 250 Glossy Black

Description

Boat part number 1117759 is a new dash panel for 2019 SDX 250 model Sea Ray boats, part number 2315223. Manufactured by Navico, part number 92-000223.

This panel is constructed out of acrylic with a glossy black finish and features backlit labels powered by a Tech Lite IFW 3318-1 module. It measures approximately 5 1/4″ H x 13 1/2″ W overall. Mounts with (4) 1/8″ Dia. bolts at the corners. Connects with (1) 12-pin Deutsch female, (2) 1/8″ Dia. lugs, and (1) female bullet, and (2) female spade connectors.

Features the following hardware and cutouts:

• Water Pump Toggle Switch | On-Off
• Bilge Pump Toggle Switch | On-Off
• Bilge Blower Toggle Switch | On-Off
• 7/8″ Dia. Ignition Switch Cutout | 3 Position
• (2) 1/8″ Dia. Cutout
• Tech LiteIFW 3318-1 | Wire Light

Specifications:

• Boat Manufacturer: Sea Ray
• Model: SDX 250
• Year: 2019
• Part Number: 2315223
• Part Manufacturer: Navico
• Part Number: 92-000223
• Material: Acrylic
• Color: Black
• Finish: Glossy
• Overall Dimensions: 5 1/4″ H x 13 1/2″ W
• Mounts: (4) 1/8″ Dia. Bolts
• Connections: (1) 12-pin Deutsch female / (2) 1/8″ Dia. lugs / (1) Female Bullet / (2) Female Spade
