Description

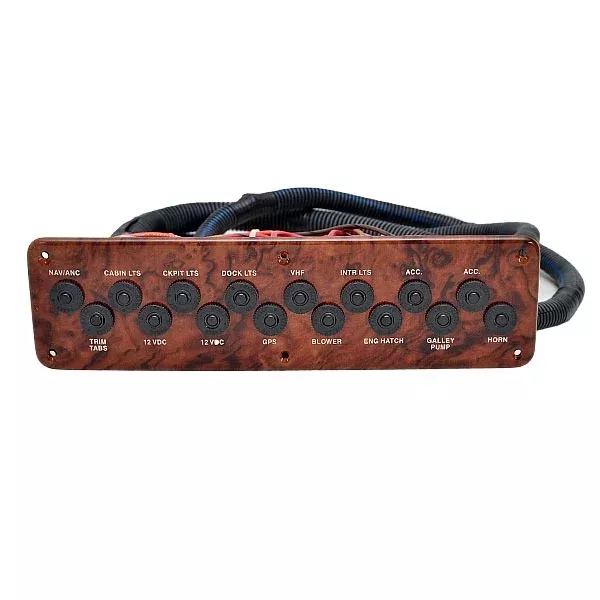

Boat part number 1055754 is a new breaker panel from Rinker Boats, part number unavailable.
This breaker panel is constructed of marine grade plastic with a faux woodgrain finish. Measures approximately 11″ W x 3″ H overall. The installed wiring harness hosts (1) 15-pin female and (1) 2-pin male connections. Mounts with (6) 1/8″ diameter holes, set apart 5″ x 2 1/4 center on center.
Features the following Carling black push-to-reset breaker buttons:
- Nav/Anc
- Trim Tabs
- Cabin Lts
- 12 VD
- CKPIT Lts
- 12 VDC
- Dock Lts
- GPS
- VHF
- Blower
- Intr Lts
- Eng Hatch
- ACC
- Galley Pump
- ACC
- Horn
Specifications:
- Boat Manufacturer: Rinker
- Material: Marine Grade Plastic
- Color: Faux Woodgrain
- Overall Dimension: 11″ W x 3″ H
- Mounts: (6) 1/8″ diameter holes, set apart 5″ x 2 1/4 center on center
- Connections: (1) 15-pin female and (1) 2-pin male
