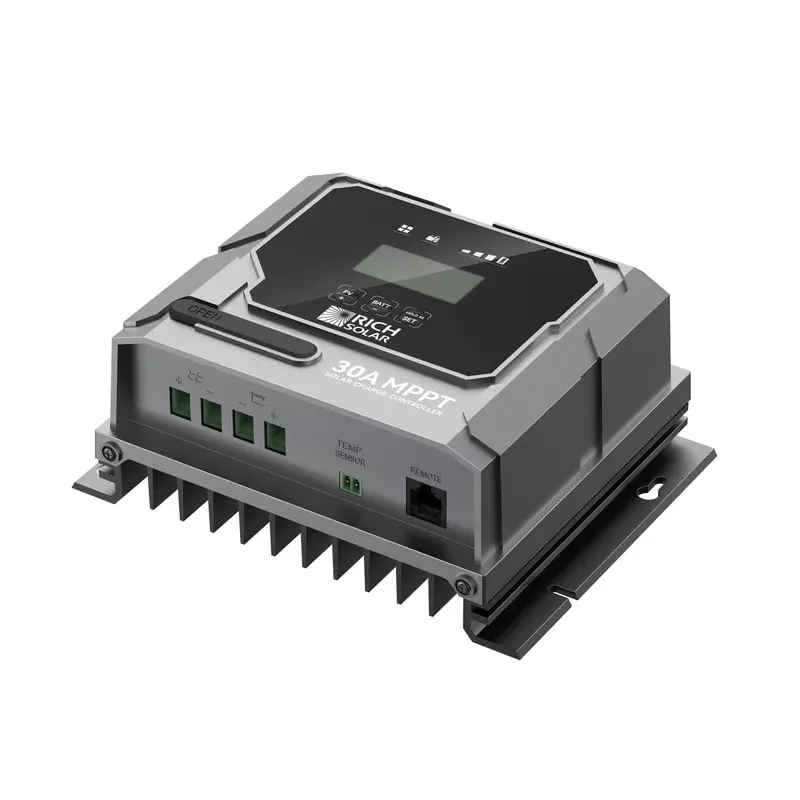

Rich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB)

Rich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB)

Original price was: $28.00.Current price is: $16.53.

61 in stock

SKU: GUOPX311574 Category:

Description

Rich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB) from Nomadic Supply Company® is a premium maximum power point tracking charge controller that optimizes solar energy harvest for 12V and 24V battery systems. With a 100V maximum solar input, built-in Bluetooth connectivity, and compatibility with nine battery chemistries, the Rich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB) maximizes charging performance in all conditions.

Rich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB) Features:

  • 99.5% MPPT Tracking Efficiency. Advanced algorithm continuously finds the optimal power point, extracting maximum energy from the Rich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB) connected solar array even during partial shade and low-light conditions.
  • 98% Conversion Efficiency. Industry-leading power conversion minimizes energy loss between the solar panels and batteries, maximizing the usable charge delivered to the system.
  • 9 Battery Type Support. Compatible with GEL, AGM, WET, Crystal, Calcium, LiFePO4, LTO, LCO, and custom battery profiles with multi-stage charging algorithms optimized for each chemistry.
  • Built-in Bluetooth Monitoring. Wireless connectivity enables real-time monitoring of charging status, solar input, battery voltage, and system parameters from a smartphone application.
  • 100V Maximum Input Voltage. Wide 8V-100V solar input range with 15V-72V MPPT tracking window accommodates higher-voltage panel configurations for greater wiring flexibility.
  • LCD and LED Display. Integrated display provides at-a-glance system information including charging mode, battery voltage, solar input power, and error status.
  • Comprehensive Protection. Over-voltage, reverse polarity, short-circuit, and over-temperature protection safeguard the Rich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB) and connected components.

Rich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB) Specifications:

  • Maximum Charging Current: 30A
  • Nominal System Voltage: 12V/24V Auto-Detect
  • Recommended Solar Power: 500W (12V) / 1,000W (24V)
  • Solar Input Voltage Range: 8V-100V
  • MPPT Voltage Range: 15V-72V
  • Maximum Conversion Efficiency: 98%
  • Maximum MPPT Tracking Efficiency: 99.5%
  • Supported Battery Types: GEL, AGM, WET, Crystal, Calcium, LiFePO4, LTO, LCO, Custom
  • Protection Rating: IP43 (PCBA) / IP22 (Connectors)
  • Certifications: ETL, FCC, CE, RoHS
  • Dimensions: 7.0 x 5.5 x 2.9 inches
  • Weight: 1.8 lbs

Rich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB) Documents:

Rich Solar BRAVO 30 MPPT User ManualRich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB) Owner’s ManualRich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB) Specifications SheetRich Solar BRAVO 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB) Specifications Sheet
