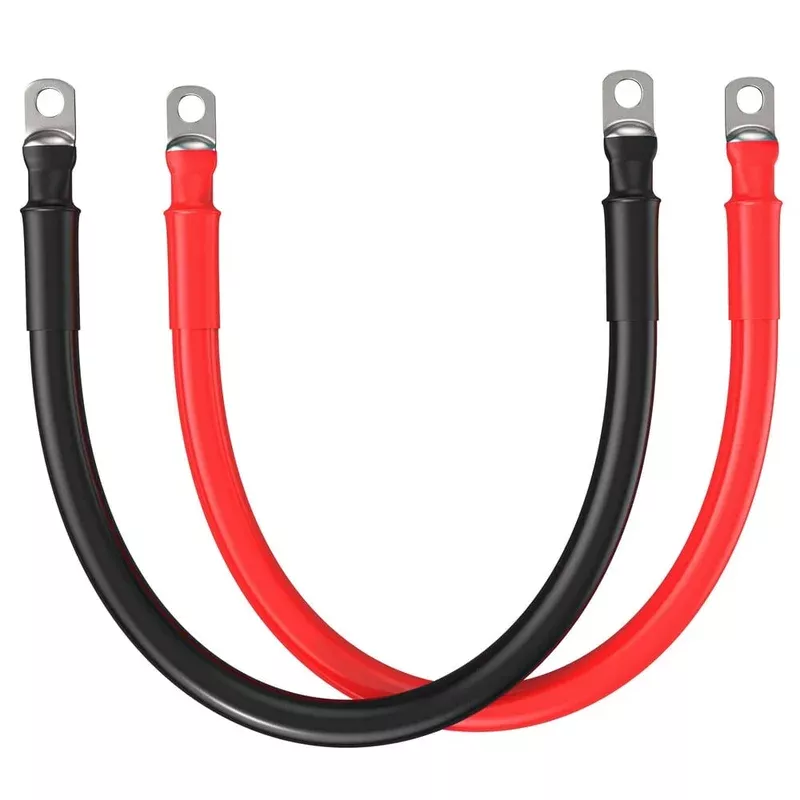

Rich Solar 6 Gauge 5/16” Battery Cables (RS-6A10F5)

Description

The Rich Solar 6 Gauge 5/16” Battery Cables (RS-6A10F5) from Nomadic Supply Company® is a heavy-duty pure copper power cable designed for reliable connections between batteries, inverters, and charge controllers. Built with 665 strands of oxygen-free copper and UL/CSA approved PVC insulation rated to 600 volts, this cable delivers maximum conductivity with minimal resistance. The pre-assembled lug terminals provide a secure, corrosion-resistant connection that stands up to demanding RV, marine, and off-grid solar installations.

Rich Solar 6 Gauge 5/16” Battery Cables (RS-6A10F5) Features:

• Pure Copper Construction. Made with 665 strands of oxygen-free copper for maximum conductivity and minimal voltage drop across the cable run.
• Pre-Assembled Lug Terminals. Factory-crimped ” ring terminals on both ends with a lifetime crimp warranty eliminate field termination guesswork.
• 600V Rated Insulation. Heavy-duty PVC insulation is UL and CSA approved, VW-1 rated for flame resistance, and moisture-proof for demanding environments.
• Wide Temperature Range. Operates reliably from -67°F to +275°F, making it suitable for engine bays, outdoor solar installations, and marine applications.
• Color-Coded Pair. Red and black cables for clear positive/negative identification, reducing the risk of reverse polarity during installation.
• ROHS Compliant. Meets ROHS environmental standards with 1,500 psi tensile strength and 500 V/mil dielectric strength for safe, durable power delivery.

Rich Solar 6 Gauge 5/16” Battery Cables (RS-6A10F5) Specifications:

• 194°F MTW – UL & CSA 221°F
• Voltage rating: Up to 600 volts
• VW-1 & moisture resistant
• Weight: 1.0 lbs
