RICH SOLAR 1200 Watt 24V Complete Solar Panel Kit

Description

The RICH SOLAR 1200 Watt 24V Complete Solar Panel Kit from Nomadic Supply Company® delivers comprehensive off-grid power with six 200-watt monocrystalline panels, dual lithium batteries, and a 3000-watt pure sine wave inverter for reliable energy independence. Advanced internal heating technology and real-time battery monitoring ensure optimal performance across all weather conditions while providing over 5,000 charging cycles.Built for durability and efficiency, the RICH SOLAR 1200 Watt 24V Complete Solar Panel Kit features premium anti-reflective tempered glass panels with anodized aluminum frames that excel in low-light conditions. The included lithium iron phosphate batteries offer UL94 V-0 flame-retardant protection with IP65 waterproof rating, while the 60-amp MPPT charge controller maximizes energy harvest with multiple safety protections.Professional installation becomes straightforward with pre-drilled mounting holes and included Z-bracket hardware that accommodates various mounting configurations. The RICH SOLAR 1200 Watt 24V Complete Solar Panel Kit from Nomadic Supply Company provides peace of mind with comprehensive warranties including 25 years for power output and 10 years for workmanship, making it an ideal solution for RVs, cabins, boats, and remote applications.

RICH SOLAR 1200 Watt 24V Complete Solar Panel Kit Features:

• Power Generation: Generates 10.9 amps of power, charges 12-volt batteries, 3′ quick connect cables with connectors, and works in series or parallel.
• Low-Light Performance: Excellent low-light performance even on early mornings, evenings, and cloudy days.
• Durable Construction: Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
• Easy Installation: Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
• Comprehensive Warranty: 25-year limited warranty for power output; 10-year workmanship warranty.
• Cold Weather Operation: Stay powered in low temps with advanced internal heating tech
• Smart Monitoring: Track battery health in real time from your phone
• Long Cycle Life: Over 5,000 cycles with UL94 V-0 flame-retardant protection
• Weather Protection: IP65 waterproof, dustproof, and tested for extreme safety
• Environmentally Safe: Free of toxic metals—safe for you and the planet
• Optimized Design: Lightweight design, heavy-duty performance
• Overload Protection: Electronic overload protection with automatic shutdown. Built-in internal backup DC fuse provides added safety.
• Low Voltage Protection: Low battery voltage protection with automatic shutdown.
• Temperature Protection: Over-temperature protection with automatic shutdown.
• Short Circuit Protection: Output short-circuit protection.

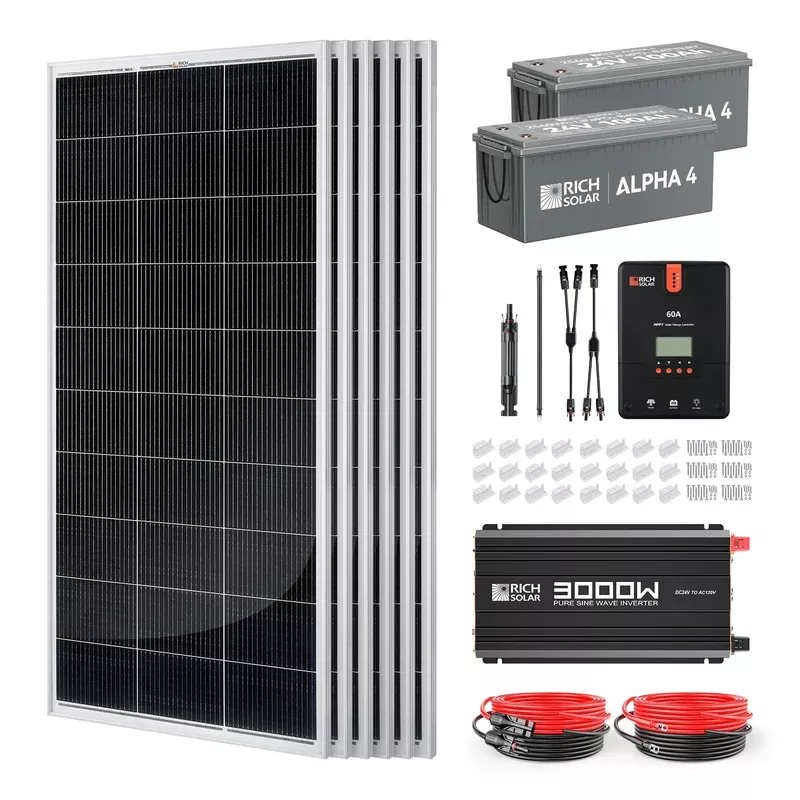

RICH SOLAR 1200 Watt 24V Complete Solar Panel Kit Includes:

• 6 x MEGA 200W 12V Panel (RS-M200)
• 2 x ALPHA 4 Lithium Battery (RS-B241S)
• 1 x NOVA 3000W 24V Inverter (RS-V3P24)
• 1 x 60A MPPT Charge Controller (RS-MPPT60)
• 6 x Z Bracket Set (RS-ZB4C)
• 1 x 30A Inline Fuse Holder (RS-SC30F)
• 1 x Y Branch Parallel Adapter (RS-Y2)
• 1 x 2 Gauge 1 FT Inverter Battery Cable Red (RS-C21R)

RICH SOLAR 1200 Watt 24V Complete Solar Panel Kit Specifications:

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 18.4V
• Maximum Power Current(Imp): 10.9A
• Open Circuit Voltage(Voc): 21.8V
• Short Circuit Current(Isc): 11.6A
• Temperature Range: -40 ~ +185°F
• Maximum Series Fuse Rating: 15A
• Panel Weight: 24 lb
• Panel Dimensions: 58.7 x 26.8 x 1.2 in
• Battery Cell Type: Lifepo4 Battery
• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Nominal Energy: 2560Wh
• Cycle Life: 5000 Cycles
• BMS: 100A
• Maximum Charging Current: 100A
• Maximum Continuous Discharge Current: 100A
• Maximum Discharge Current 10 Seconds: 110A
• Charge Method: CC/CV
• Charge Voltage: 14.4V ± 0.2V
• Recommend Charge Current: 50A (0.5C)
• Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
• Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
• Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)
• External Power Draw: 100W
• Internal Heating Starts: <41°F (5°C)
• Internal Heating Stops:> 50°F (10°C)
• Net Battery Weight: 48.5lb
• Battery Size(LxWxH): 20.9×8.1×8.5in
• Housing Material: ABS (Flame Retardant Plastic)
• Protection Class: IP65
• Inverter Model: RS-V3P24
• Rated Voltage: 24V DC
• Continuous Power: 3000W
• Peak Surge: 6000W
• Waveform: Pure Sine Wave
• Input Voltage: 24V DC
• Output Voltage: 120V AC
• Output Frequency: 60 Hz
• Output Efficiency: ＞88%
• AC Output Sockets: 3
• USB Power Port: 5V / 2.1A
• Power Output Control: AC On/Off Switch
• Operating Temperature: 14°F to 122°F
• Inverter Dimensions: 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)
• Inverter Weight: 12.1 (lb) / 5.5 (kg)
• Rated Battery Current: 60A
• Rated Load Current: 20A
• Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
• Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
• Charge Circuit Voltage Drop: ≤0.26V
• Discharge Circuit Voltage Drop: ≤0.15V
• Controller Operating Temperature: -31°F to 113°F

RICH SOLAR 1200 Watt 24V Complete Solar Panel Kit Documents:

RICH SOLAR 1200 Watt 24V Complete Solar Panel Kit Owner’s ManualRICH SOLAR 1200 Watt 24V Complete Solar Panel Kit Specifications Sheet
