Regal OBX Boat Gauge Dash Panel 202703 | Black Aluminum

Description

Boat part number 1118679 is a new gauge dash panel for Regal OBX series boats, part number 202703 . Year unavailable. Manufactured by Kauffman Engineering, part number 85022739 .

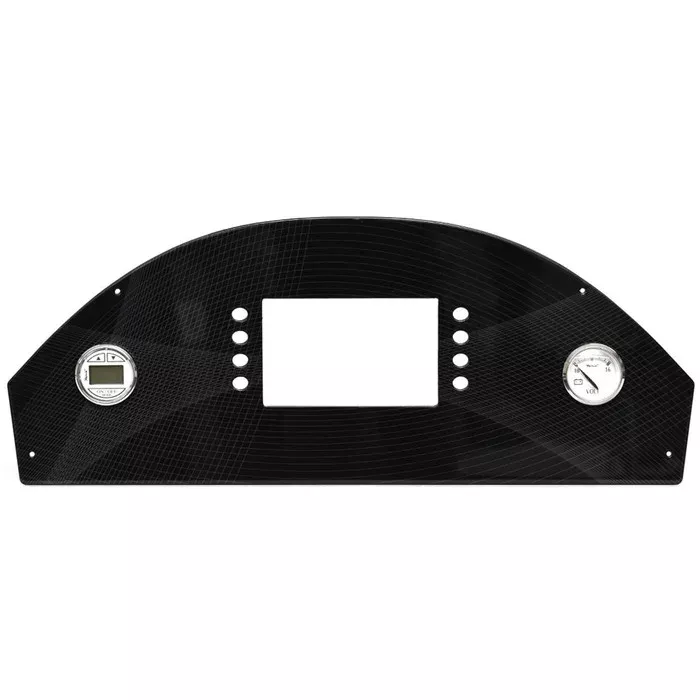

This dash panel is constructed out of aluminum with a glossy black surface and striped mesh pattern on the front. Measures approximately 9 3/4″ H x 24 1/2″ W overall and uses (1) 9-pin male, (1) 10-pin male, and bullet wire lead connections. Hosts (1) 6 1/4″ W x 3 7/8″ H display cutout and (8) 3/8″ H x 1/2″ W button cutouts. Mounts with (4) 1/8″ dia. holes set around the perimeter.

This dash panel features (2) pre-installed Faria gauges from the Newport series. Each of these red halogen illuminated gauges feature a silver bezel, domed lens, white face, black lettering numerals and accents, and black needles.

This panel features the following gauges:

• (1) Depth Sounder | DS0110A
• (1) Volt Gauge | VP4081A

Specifications

• Boat Manufacturer: Regal
• Series: OBX
• Year: Unavailable
• Part Number: 202703
• Part Manufacturer: KauffmanEngineering
• Part Number: 85022739
• Material: Aluminum
• Color: Black
• Finish: Glossy
• Pattern: Striped Mesh
• Overall Dimensions: 9 3/4″ H x 24 1/2″ W
• Cutouts: (1) 6 1/4″ W x 3 7/8″ H (Display) | (8) 3/8″ H x 1/2″ W (Buttons)
• Connections: (1) 9-Pin male | (1) 10-Pin Male | Bullet Wire Lead
