Description
B60 Tilted Element 12°
12° titled version is designed for 8° – 15° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

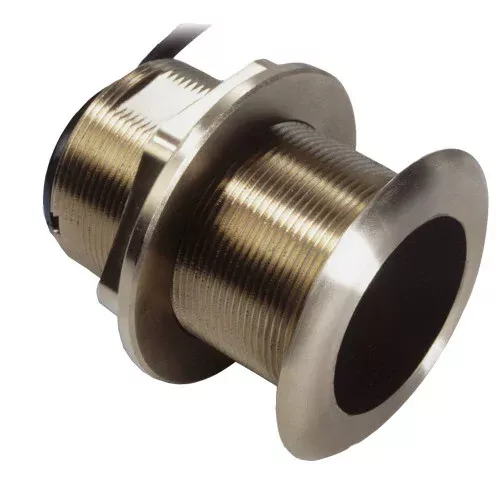

The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16″) extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: No
- Cable Length (Feet): 33′
- Box Dimensions: 4″H x 8″W x 11″L WT: 5 lbs
- UPC: 723193660867
Owner’s Manual (pdf)Brochure (pdf)California Residents: WARNINGCancer and Reproductive Harm – P65Warnings.ca.gov
