Pursuit Boat Breaker Box 329685 | DNA Group 10 3/4 x 7 1/2 Inch Black

Description

Boat part number 7400283 is a new breaker box from Pursuit Boats, part number 329685 . Manufactured by DNA Group, part number 91YY5118-1B .

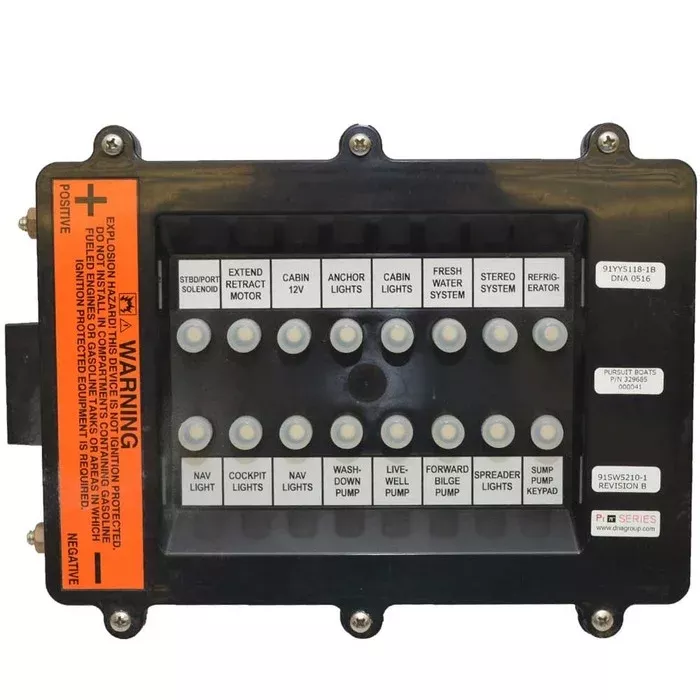

This breaker box is constructed out of black marine grade plastic, and measures approximately 10 3/4″ W x 7 1/2″ H x 3″ D overall. Mounts with (4) 1/4″ Dia. mounting holes. Each breaker features a clear rubber protective covering for durability. Has (1) 40-pin male connection, and (1) positive and (1) negative threaded terminal.

Features the following Push-to-Reset Breakers:

• (1) STBD/PORT Solenoid
• (1) Extend Retract Motor
• (1) Cabin 12V
• (1) Anchor Lights
• (1) Cabin Lights
• (1) Fresh Water System
• (1) Stereo System
• (1) Refrigerator
• (1) Nav Light
• (1) Cockpit Lights
• (1) Nav Lights
• (1) Washdown Pump
• (1) Livewell Pump
• (1) Forward Bilge Pump
• (1) Spreader Lights
• (1) Sump Pumb Keypad

Specifications:

• Boat Manufacturer: Pursuit
• Part Number: 329685
• Part Manufacturer: DNA Group
• Part Number: 91YY5118-1B
• Material: Plastic
• Color: Black
• Overall Dimensions: 10 3/4″ W x 7 1/2″ H x 3″ D
• Mounts: (4) 1/4″ Dia. mounting holes
• Connection: (1) 40-pin male, (1) positive and (1) negative threaded terminal
