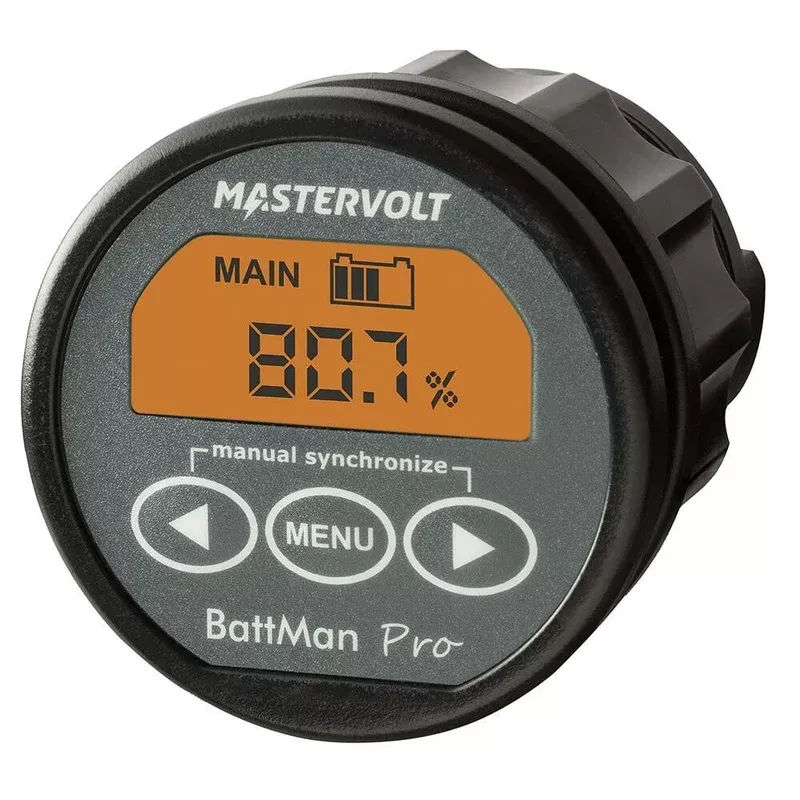

Mastervolt BattMan Pro Battery Monitor (70405070)

Mastervolt BattMan Pro Battery Monitor (70405070)

Original price was: $63.19.Current price is: $46.21.

90 in stock

SKU: ZWJAB557868 Category:

Description

The Mastervolt BattMan Pro Battery Monitor (70405070) fromNomadic Supply Company® is a Battery monitor, 12/24 V DC with a large, splashproof display (IP65) and power bar. The Mastervolt BattMan Pro Battery Monitor (70405070) displays remaining time and stores special battery status events.The Mastervolt BattMan Pro Battery Monitor (70405070) is an affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover, it will warn you when your battery bank is empty. Also displays the remaining time until your battery needs to be charged and stores special battery status events.

Mastervolt BattMan Pro Battery Monitor (70405070) Specifications:

General specifications
Number of battery outlets 2; service (fully), starter (voltage)
Display/read-out voltage, current, amp-hours, time remaining, battery capacity in %, special battery status events
Languages on display universal
Built-in depth 72.5 mm2.9 inch
Dimensions Ø 64 mm, depth 79 mm
Dimensions shunt, hxwxd 87 x 45 x 35 mm3.4 x 1.8 x 1.4 inch
Weight 0.15 kg0.3 lb
Technical specifications
Max. Ah capacity 9999 Ah
Supply voltage 9-35 V
Voltage range 0-35 V
Current consumption (backlight off) 8 mA/12 V, 6 mA/24 V
Current consumption (backlight on) 30 mA/12 V, 18 mA/24 V
Voltage resolution 0.01 V
Voltage accuracy ± 0.3%
Shunt specification 500 A / 50 mV (service set)
Current measurement range 0-500 A
Current accurancy ± 0,4 %
Battery alarm contact yes, potential free
Remaining time indication yes
Historical data yes
MasterBus compatible no
Connection cable (6-wire) necessary yes
Modular cable necessary no
