Description
Boat part number 8403129 is a new surf trim tab kit for a 2015 MasterCraft NXT20 boat, part number 559941 . Manufactured by Lenco, part number 11531-101 .

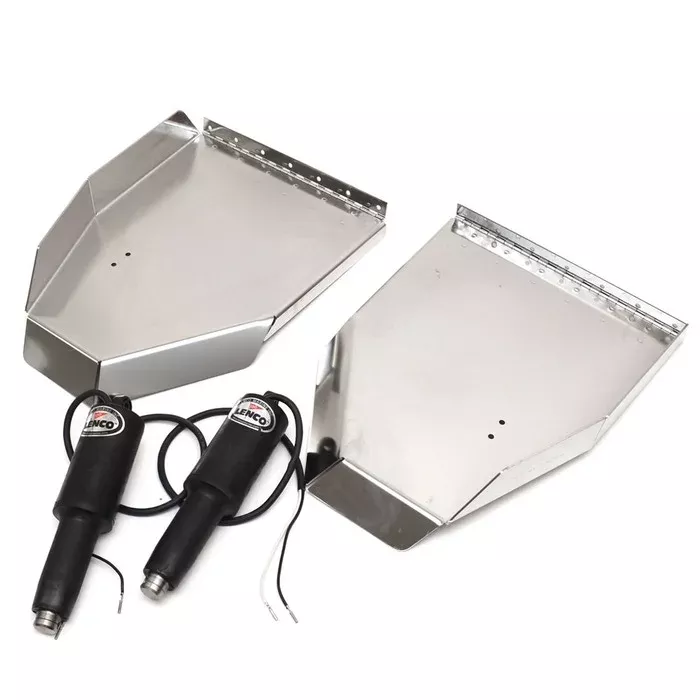

This surf tab kit contains the following:
- (2) Trim Tab Blades
- (2) Actuators
These surf tabs are constructed out of 12 gauge stainless steel. The manufacturer calls these a 17.85 x 13.47 tabs, we measure each to be approximately 13 1/2″ W x 18″ D x 3 3/4″ H overall. See photos for detailed measurements. Each mounts via 13″ L hinge with (7) 1/4″ Dia. holes spaced apart 2″ center to center.Manual included.
Specifications:
- Boat Manufacturer: MasterCraft
- Model: NXT20
- Year: 2015
- Part Number: 559941
- Part Manufacturer: Lenco
- Part Number: 11531-101
- Material: Stainless Steel
- Thickness: 12 Gauge
- Color: Silver
- Manufacturer Dimensions: 17.85 x 13.47
- Overall Dimensions: 13 1/2″ W x 18″ D x 3 3/4″ H
- Mounts: 13″ Hinge w/ (7) 1/4″ Dia. Holes Set Apart 2″ CTC
- Connections: (2) Wire Lead (Actuators)
