Description

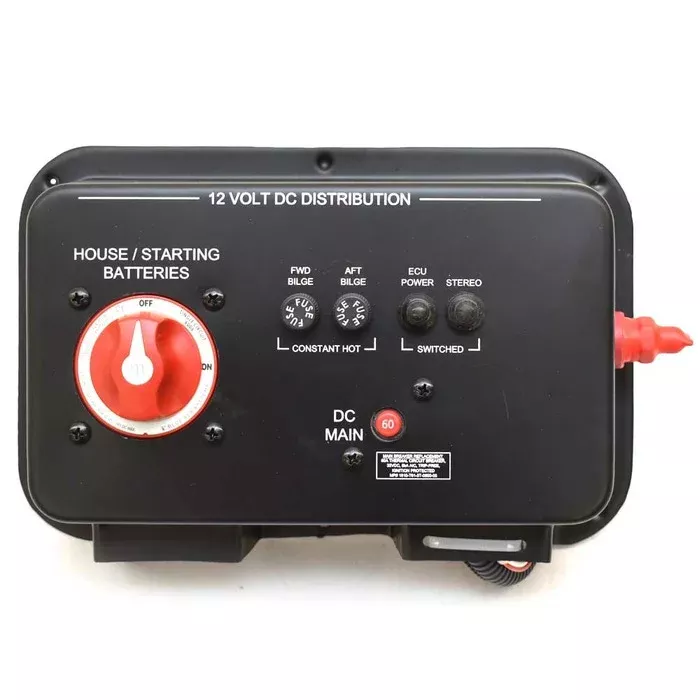

Boat part number 1108824 is a new 12V battery switch distribution panel for NXT MasterCraft Boats, part number 502317B . Manufactured by BH Electronics, part number 243-01096-V .
This battery switch panel is constructed out of black plastic with a matte finish. It measures approximately 11″ W x 7″ H x 3″ D overall and has (3) 3/16″ Dia. mounting holes. See photos for measurements.
Features the following:
- House/Starting Battery Rotary Switch | ON/OFF
- Constant Hot Forward Bilge Fuse
- Constant Hot Aft Bilge Fuse
- Switched ECU Power Booted Breaker
- Switched Stereo Booted Breaker
- DC Main Red Breaker
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Tag reads: NXT SINGLE BATT SW BOX WITH SLOW BL
Specifications:
- Boat Manufacturer: MasterCraft
- Model: NXT
- Part Number: 502317B
- Part Manufacturer: BH Electronics
- Part Number: 243-01096-V
- Material: Plastic
- Color: Black
- Finish: Matte
- Electrical: 12V
- Overall Dimensions: 11″ W x 7″ H x 3″ D
- Mounts: (3) 3/16″ Dia. mounting holes
