Lund Boat Switch Panel 2116236 | w/ Mercury Gauges I/O

Description

Boat part number 8303194 is a new gauge/switch panel from Lund Boats, part number 2116236 . Model and year unavailable.

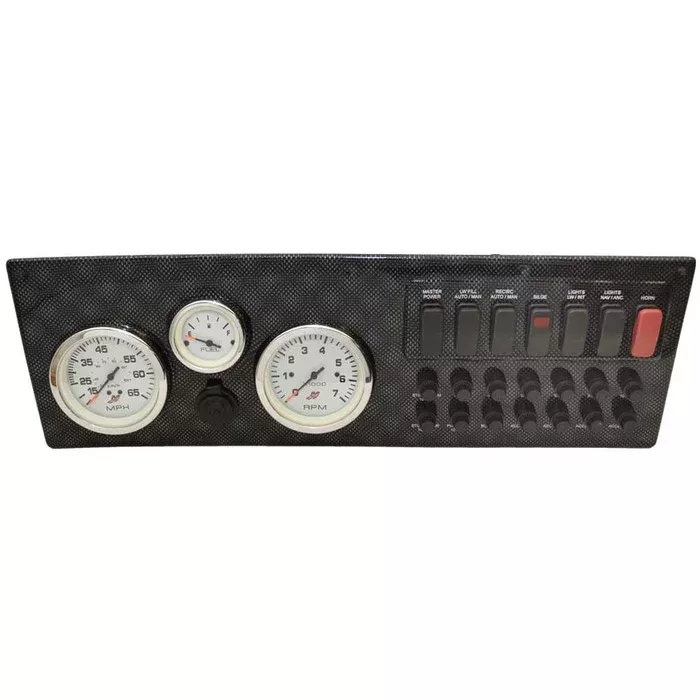

Constructed out of marine grade plastic with a carbon fiber pattern, this panel measures approximately 20 7/8″ L x 7″ H x 4 1/4″ D overall. The installed wiring harness hosts (1) 13-pin female, (3) spade female, (2) 1/8″ Dia. battery terminal, and (4) wire lead connections.

This dash panel features (3) pre-installed Mercury Marine gauges. Each of these clear halogen illuminated gauges feature a silver bezel, domed lens, white face, black lettering, numerals and accents, and orange tipped black needles.

This panel features the following gauges:

• (1) 65 MPH Speedometer: 895285A43 | Pitot connection
• (1) 7000 Tachometer: 895283A45 | Set up for 4/6/8 Cylinder and 2/3/4/5/6 PoleMercury Engines | (4) threaded bolt connections
• (1) Fuel Gauge: 895291A41 | (2) spade male and (3) threaded bolt connections

This dash panel includes the following rocker switches:

• (1) On/Off “Master Power”
• (1) On/Off/On “Lw Fill Auto / Man”
• (1) On/Off/On “Recirc Auto Man”
• (1) On/Off “Bilge”
• (1) On/Off “Lights Lw / Int”
• (1) On/Off/On “Lights Nav / Anc”
• (1) Momentary On/Off ” Horn”

This panel also includes the following pre-installed fuses:

• (2) “Stereo Mem 10 Amp”
• (5) “5 Amp”
• (1) “10 Amp”
• (1) “Power Plug 10 Amp”
• (1) “Bow Acc”
• (4) “Accessory”

Specifications

• Boat Manufacturer: Lund Boats
• Model/ Year: Unavailable
• Part Number: 2116236
• Material: Marine Grade Plastic
• Color: Carbon Fiber
• Overall Dimensions: 20 7/8″ L x 7″ H x 4 1/4″ D
• Connections: (1) 13-Pin Female | (2) 1/8″ Dia. Battery Terminal | (3) Spade Female | (4) Wire Lead
• Set up for 4/6/8 Cylinder and 2/3/4/5/6 Pole Mercury Engines
