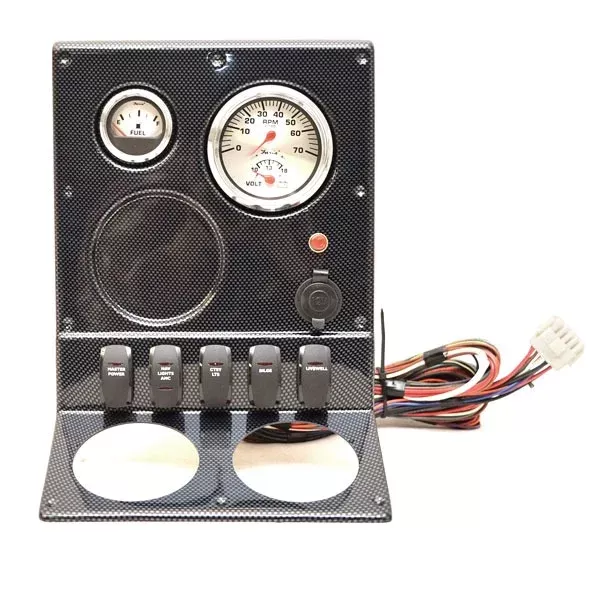

Lund Boat Gauge Panel Assembly 2161252 | 13 x 9 3/4 Inch Black Gray

Description

Boat part number 8302730 is a new gauge / switch panel assembly from Lund, part number 2161252 .

This panel is constructed out of marine grade plastic in a black and gray checkered color. The panel bends at an approximate 120° and measures approximately 13″ H x 9 3/4″ W x 8 1/2″ D overall. Contains (2) 3 5/8″ dia. cutouts and features an pre-molded 3 3/4″ dia. optional cutout. Has (10) 1/4″ dia. pre-indented mounting options around the perimeter. For more measurements please see photos.

The pre-installed Silver Spun gauges from Faria feature a clear halogen illuminated bulb, flat lens, silver bezels, silver face, black lettering, numerals, accents, and red needles.

The pre-installed Faria gauges are as follows:

• Fuel Gauge | GPC102A | Has a 4 pin deutsch style connector.
• Multi-Function Gauge | GTC047A | 7000 RPM Tachometer / Volt | Set up for 4/6/8 Cylinders or 4/6/8/10/12 Outboard Poles. Has a 6 pin deutsch style connector.

This panel features the following components:

• (1) Carling red push button | Horn
• (1) Marinco 12V Outlet
• (1) Carling “Master Power” actuator switch | On/Off
• (1) Carling “Nav Lights Anc” actuator switch | On/Off/On
• (1) Carling “Courtsey Lights” actuator switch | On/Off
• (1) Carling “Bilge” actuator switch | On/Off
• (1) Carling “Livewell” actuator switch | On/Off

Specifications:

• Boat Manufacturer: Lund
• Part Number: 2161252
• Material: Plastic
• Color: Black / Gray
• Finish: Glossy
• Overall Dimensions: 13″ H x 9 3/4″ W x 8 1/2″ D
• Connections: (1) 12 Spade Male (1) 12 Pin Female (1) 3 Pin Female
• Tachometer Set Up For 4/6/8 Cylinders or 4/6/8/10/12 Outboard Poles
