Hydra Sports Boat Breaker Panel HS14001135 | 3000 CC

Description

Boat part number 1075148 is a new breaker panel from Hydra Sports Boats, part number HS14001135 . Manufactured by BH Electronics, part number 220-05703-P . We believe this to be for a 2013, 3000 CC model boat. Please contact your dealer to confirm if this part is compatible with your model and year.

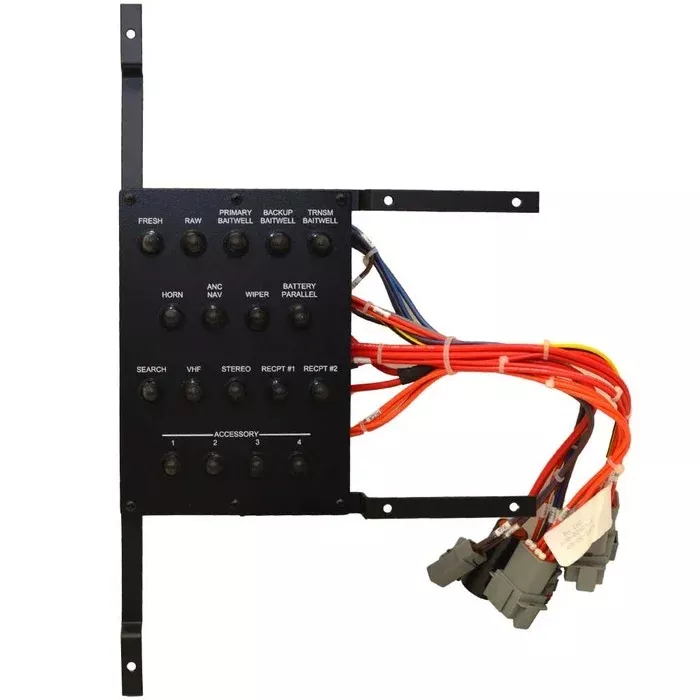

This panel with extending mounting brackets is constructed out black powder coated aluminum, and measures approximately 16 1/4″ H x 9 7/8″ W overall. The panel itself measures approximately 7 3/4″ H x 5 1/2″ W. Mounts with (6) 1/4″ Dia. mounting holes.

Features the following Push-to-Reset Breaker Buttons:

• (1) 10 Amp FRESH
• (1) 10 Amp RAW
• (1) 10 Amp PRIMARY BAITWELL
• (1) 10 Amp BACKUP BAITWELL
• (1) 10 Amp TRNSM BAITWELL
• (1) 15 Amp HORN
• (1) 7 Amp ANC NAV
• (1) 10 Amp WIPER
• (1) 5 Amp BATTERY PARALLEL
• (1) 10 Amp SEARCH
• (1) 10 Amp VHF
• (1) 7 Amp STEREO
• (1) 10 Amp RECPT 1
• (1) 10 Amp RECEPT 2
• (4) 10 Amp ACCESSORY (1, 2, 3, 4)

Specifications:

• Boat Manufacturer: Hydra Sports
• Model: 3000 CC
• Year: 2013
• Part Number: HS14001135
• Material: Aluminum
• Color: Black
• Finish: Powder Coated
• Overall Dimensions: 16 1/4″ H x 9 7/8″ W
• Panel Dimensions: 7 3/4″ H x 5 1/2″ W
• Mounts: (6) 1/4″ Dia. mounting holes
