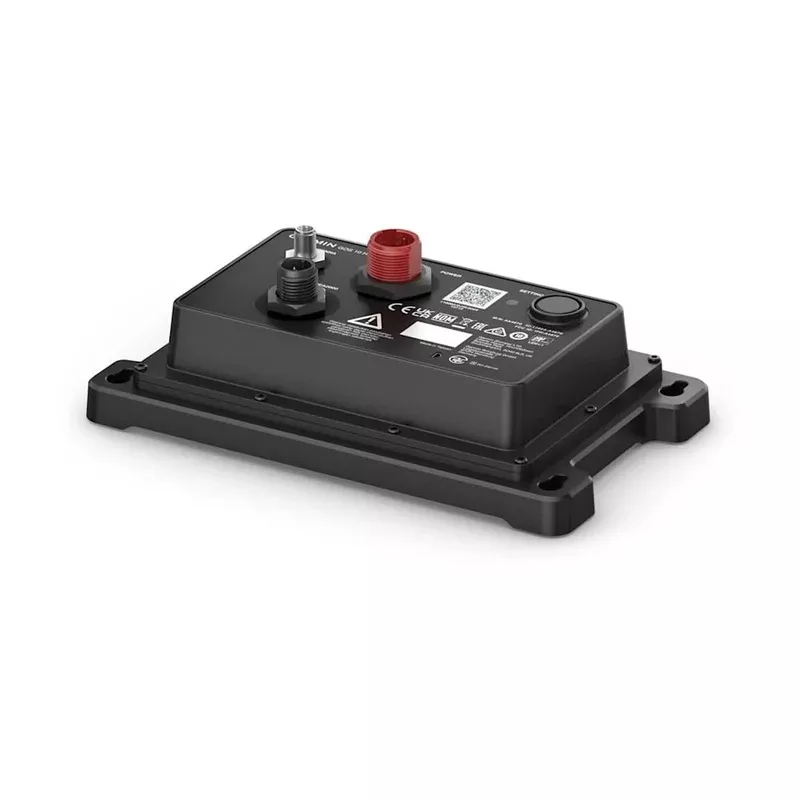

Garmin OnBoard Man Overboard System GOS 10 Hub (010-02908-10)

Garmin OnBoard Man Overboard System GOS 10 Hub (010-02908-10)

Original price was: $63.99.Current price is: $33.84.

84 in stock

SKU: ZWJAB558211 Category:

Description

The Garmin OnBoard Man Overboard System GOS 10 Hub (010-02908-10)fromNomadic Supply Company® communicates wirelessly with the MOB tags and connects to your vessel’s engine harness to provide Engine Cut Off System (ECOS) functionality. Protect your passengers and loved ones with the GOS 10 Hub for the Garmin OnBoard Man Overboard System (010-02908-00).

Garmin OnBoard Man Overboard System GOS 10 Hub (010-02908-10) Includes:

  • GOS 10 Hub for the Garmin OnBoard System
  • 12-pin fused power and engine cut-off harness with external buzzer
  • External antenna for wireless connection to MOB tags
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable
  • Installation hardware
  • Documentation

Garmin OnBoard Man Overboard System GOS 10 Hub (010-02908-10) Specifications:

Dimensions (HxWxD) 91.55 mm x 155.12 mm x 48.47 mm
Weight 171.7 g
Wireless range 66 ft (up to 20 m)
Supply voltage range 10-32 V
Operating temperature range -15 C to 70 C
Typical power consumption 50mA @ 12 V or 0.6 W
NMEA 2000 LEN 1
Engine compatibility Inboard, outboard, sterndrive from all major manufacturers
Engine interface Hardwired, in-line connection to ignition harness
Number of engines supported Up to 4 close-to-stop or 2 open-to-stop engines
Water rating IPX6 and IPX7
Compass-safe distance 5 cm

Garmin OnBoard Man Overboard System GOS 10 Hub (010-02908-10) Documents:

Garmin OnBoard Man Overboard System GOS 10 Hub (010-02908-10) Owner’s ManualGarmin OnBoard Man Overboard System GOS 10 Hub (010-02908-10) Installation Manual
