Description

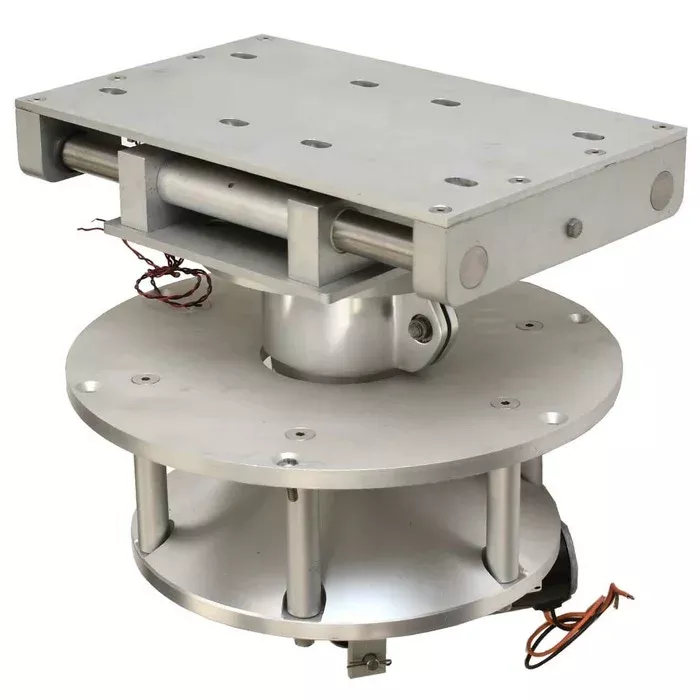

Boat part number 1112354 is a new heavy duty electric seat pedestal from Garelick, part number 78003-45 . Commonly used on Cruisers Yachts, part number V1510400 , but may be used on other boats.
This seat pedestal is constructed out of heavy duty aluminum. Features a standard 5″ x 12″ mounting pattern and (6) 3/8″ Dia. mounting holes. There are (4) wire leads.
Approximate Measurements:
- Overall Dimensions: 15″ Dia. x 16″ H
- Above Deck Height: 9 1/4″
- Base Diameter: 15″ Dia.
- Mount Surface: 15″ L x 9 1/2″ W
- Mounting Pattern: 5″ x 12″
- Cutout Dimension: 12″ Dia.
- Below Deck Clearance: 6 3/4″
See photos for measurements.
Specifications:
- Boat Manufacturer: Cruisers Yachts
- Part Number: V1510400
- Part Manufacturer: Garelick
- Part Number: 78003-45
- Material: Aluminum
- Color: Silver
- Mounts: (6) 3/8″ Dia. mounting holes
- Connections: (4) wire leads
