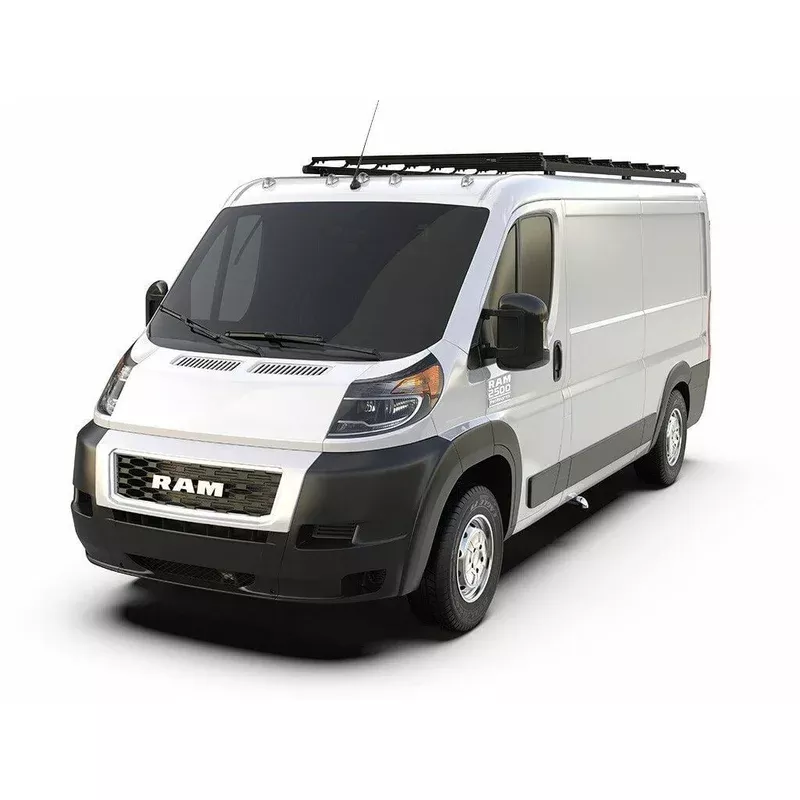

Front Runner Ram Promaster 2500 (136”/Low Roof) Slimpro Roof Rack

Description

Unlock your Ram Promaster van’s storage potential with this highly versatile, rugged, Front Runner Outfitters Ram Promaster 2500 (136”/Low Roof) Slimpro Roof Rack from Nomadic Supply Company®.Long distance van-life missions, weekend trips, or hauling equipment such as ladders and pipes, the low-profile rack is designed to support large loads. It features an adjustable slat system to accommodate just about any type of roof-mounted equipment such as air conditioning units, skylights, and air vents. The rack’s expansive load-carrying area was designed to carry gear and mount Front Runner accessories in a huge range of configurations.

Front Runner Ram Promaster 2500 (136”/Low Roof) Slimpro Roof Rack Features:

• Compatible with RAM Pro Master 2500 (136” WB) (2014-Current) Low Roof vans with a vehicle length of 5427mm / 213.7″.
• Load-carrying area: 2974mm (117.1″) x 1565mm (61.6″).
• Six (6) Mounting Feet secure into the van’s existing factory mounting points.
• Included Slat Bracket can be inverted for a lower profile at 85mm (3.4″) height, or left instandard configuration at 127mm (5″).
• Compatible with most Front Runner accessories.
• Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.
• The fitment guide and all mounting hardware are included. No drilling or modification is required.
• All Front Runner racks are backed by a limited lifetime warranty.*

Front Runner Ram Promaster 2500 (136”/Low Roof) Slimpro Roof Rack Specifications:

KVRP004T – RAM Pro Master 2500 (136” WB/Low Roof) (2014-Current) Slimpro Van Rack Kit – by Front RunnerConsisting of:3x FAVF002 – FPCR Foot Set – by Front Runner1x RRAC207 – Van Rack Joiner Kit2x RRAC208 – Van Rack Side Profile End Caps4x RRNS1475 – Narrow Slat / 1475mm (Pair)1x SPVT002 – Van Rack Side Profile / 1358mm1x SPVT003 – Van Rack Side Profile / 1560mm1x WDST013 – Wind Deflector Van Rack 30mm LipMaterial Used:Black epoxy powder-coated T6 aluminumHigh strength steelAssembled Rack Kit Dimensions:2974mm (117.1″) L x 1565mm (61.6″) W x 127mm (5″) HApproximate Installed Weight:31.49kg (69.42lbs)RAM Pro Master Van Rack Kit heights are adjustable from 80mm (Z bracket inverted) to 130mm (Z bracket standard mounting) all measurements are taken from the bottom of the roof ditch to the top of the rack slat.The slat T slots and side profiles take standard M8 hex bolts on top and bottom.Shipping Dimensions:Width: 300mm (12″)Length: 1805mm (71″)Height: 190mm (7″)Shipping Weight:Weight: 36.35kg (80lbs)

Front Runner Ram Promaster 2500 (136”/Low Roof) Slimpro Roof Rack Documents:

Front Runner Outfitters Ram Promaster 2500 (136”/Low Roof) Slimpro Roof Rack Owner’s Manual Front Runner Ram Promaster 2500 (136”/Low Roof) Slimpro Roof Rack Kvrp004t
