Description

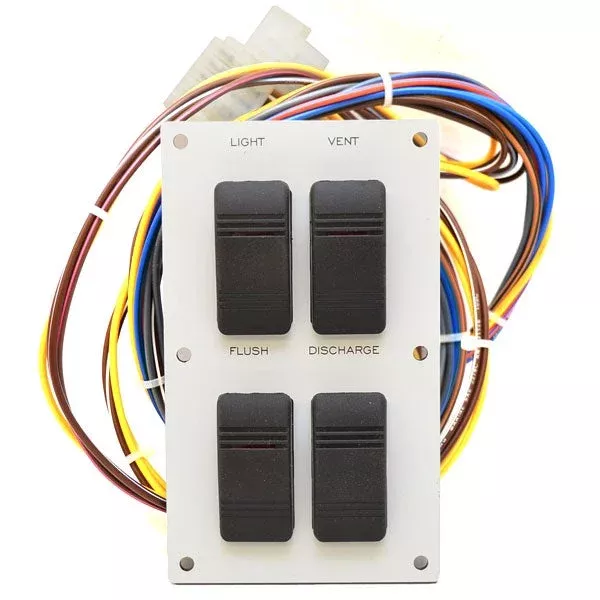

Boat part number 8202523 is a new head switch panel for a 378 Vista model Boat from Four Winns, part number 025-3039 .
This head switch panel is constructed of marine grade plastic, white in color with a matte finish. Measures approximately 5 7/8″ W x 3 1/2″ H overall, has (6) mounting holes around perimeter that measure approximately 1/8″ Dia. Each mounting hole is spaced 3″ apart center on center.
Connection:
- (1) 3 Pin Female
- (1) 4 Pin Female
- (1) 12 Pin Male
This panel host the following pre-marked switches:
- On/Off Light (Illuminated)
- On/Off Vent (Illuminated)
- On/Off Flush (Illiminated)
- Momentary On/Off Discharge
Specifications:
- Boat Manufacturer: Four Winns
- Model: 378 Vista
- Part Number: 025-3039
- Material: Marine Grade Plastic
- Color: White
- Finish: Matte
- Overall Dimensions: 5 7/8″ W x 3 1/2″ H
- Mounts: (6) 1/8″ Dia. Holes
