Faria Boat Gauge Set |Tachometer / Multifunction Mercury Engines (3 PC)

Description

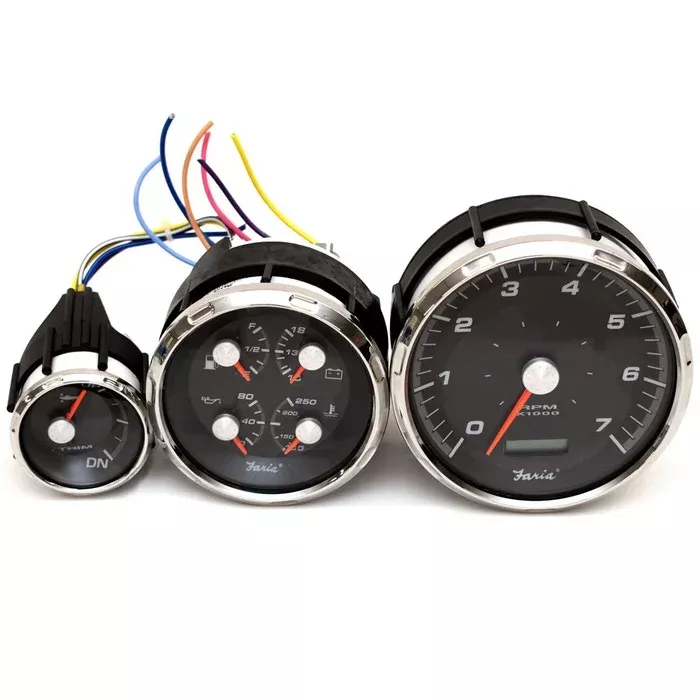

Boat part number 1118586 is a new 3-piece gauge set from Faria.

Set includes the following:

• Tachometer w/ Digital Screen | P/N: THC616A | Gasoline | 4/6/8 cylinder inboard, 4/6/8/10/12 pole outboard | (1) 4-pin male Deutsch connection
• Multifunction Fuel/Volt/Oil/Temperature | P/N: GFC634B | (2) 6-pin male Deutsch connection
• Trim | P/N: GBC652A | Mercury engines | (1) 4-pin male Deutsch

These clear LED illuminated gauges feature a domed lens, silver bezel, black face, orange needles, white graphics, and blue through-dial lighting.

The large gauges measure approximately 3 3/4″ Dia. and 4 5/8″ Dia. across the face including bezel, and require a approximate 3 1/4″ Dia. and 4 1/4″ Dia. cutouts, respectively. The trim gauge measures approximately 2 1/4″ Dia. across the face including bezel and requires an approximate 2″ Dia. cutout.

Ohms range for the trim gauge:

• Up: 160
• Mid: 38.7
• Down: 10

Mounting brackets included.

Specifications:

• Part Manufacturer: Faria
• Color: Silver / Black
• Cutout Dimensions: 4 1/4″ Dia. / 3 1/4″ Dia. / 2″ Dia.
• Overall Dimensions: 4 5/8″ Dia. / 3 3/4″ Dia. / 2 1/4″ Dia.
• Fuel: Gasoline
• Set Up For: 4/6/8 cylinder inboard, 4/6/8/10/12 pole outboard
• Engines: Mercury
