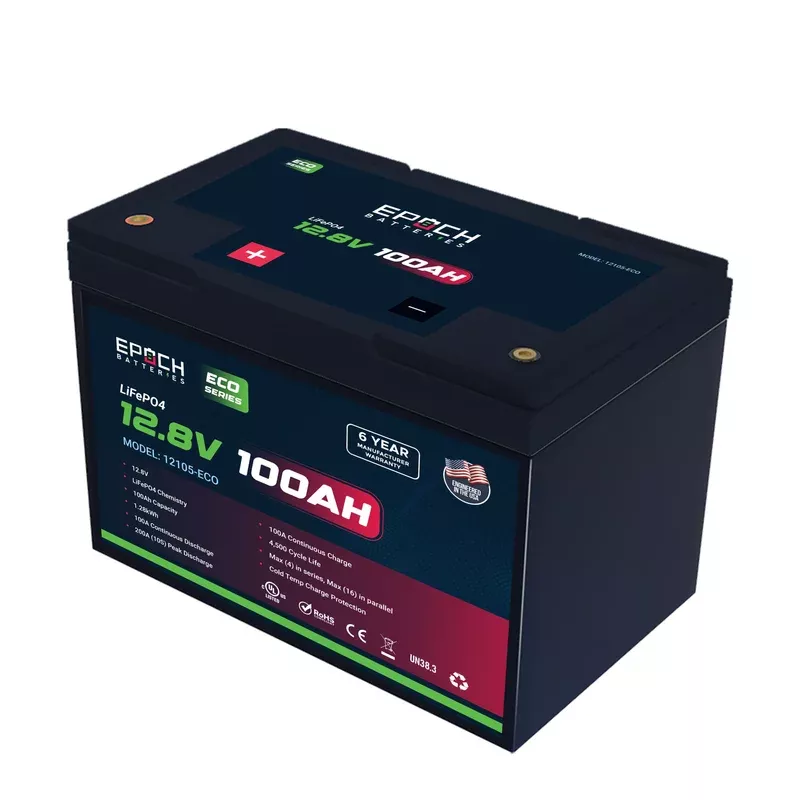

Epoch Batteries 12V 100Ah Eco Series LiFePO4 Battery

Description

The Epoch Batteries 12V 100Ah Eco Series LiFePO4 Battery from Nomadic Supply Company® is a high-performance lithium iron phosphate deep cycle battery designed for overlanding vehicles, RVs, marine applications, and off-grid solar systems. With a 1.28 kWh energy capacity and an advanced BMS featuring over 20 built-in safety protections, this battery delivers reliable and consistent power in demanding conditions. The IP54 weatherproof rating ensures protection against dust and water splashes, while the low-temperature charge cutoff safeguards the cells during cold weather operation. At just 21 lbs in a standard Group 24 form factor, the 12100-ECO offers a direct drop-in replacement for traditional lead-acid batteries with dramatically improved cycle life, lighter weight, and zero maintenance requirements.

Epoch Batteries 12V 100Ah Eco Series LiFePO4 Battery Features:

• LiFePO4 Deep Cycle Chemistry. Utilizes lithium iron phosphate cells for superior safety, longer lifespan, and consistent power output compared to traditional lead-acid batteries.
• 4,500+ Cycle Life. Delivers over 4,500 charge cycles with minimal capacity loss, providing years of reliable service without the need for replacement.
• Advanced Battery Management System. Built-in smart BMS with over 20 safety features including overcharge protection, over-discharge protection, over-current protection, short circuit protection, and high and low temperature disconnects.
• IP54 Weatherproof Rating. Effectively shielded against dust and water splashes, providing reliable protection for most outdoor and marine applications.
• Low-Temperature Charge Protection. Automatically disconnects charging in freezing conditions to prevent damage to the lithium cells and extend battery longevity.
• Flexible System Configuration. Connect up to 4 batteries in series for 48V systems or up to 16 in parallel for a massive 20.48 kWh energy storage capacity.
• Group 24 Form Factor. Standard Group 24 dimensions (10.25 x 6.75 x 9 inches) for easy drop-in replacement of existing lead-acid batteries.
• Lightweight Design. Weighs only 21 lbs, significantly lighter than comparable lead-acid batteries, making installation and handling much easier.
• Maintenance-Free Operation. No watering, no equalization charges, and no corrosion — simply install and enjoy reliable power.
• 6-Year Manufacturer Warranty. Backed by a comprehensive 6-year warranty from Epoch Batteries for peace of mind and long-term reliability.

Epoch Batteries 12V 100Ah Eco Series LiFePO4 Battery Specifications:

• Chemistry: LiFePO4 (Lithium Iron Phosphate)
• Cell Configuration: 4S1P
• Nominal Voltage: 12.8V
• Capacity: 100Ah (1.28 kWh)
• Max Continuous Discharge Current: 100A
• Max Charge Current: 100A
• Peak Discharge Current: 300A (5 seconds)
• Max Charge Voltage: 14.6V
• Operating Voltage Range: 10.0V – 14.6V
• Recommended Bulk/Absorption Voltage: 14.2V – 14.4V
• Recommended Float Voltage: Disabled (preferred) or 13.3V – 13.6V
• Series Configuration: Up to 4 in series (48V max)
• Parallel Configuration: Up to 16 in parallel (20.48 kWh max)
• Charge Temperature Range: 32°F to 131°F (0°C to 55°C)
• Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
• Cycle Life: 4,500+ cycles
• IP Rating: IP54
• BMS High Voltage Cutoff: 14.6V
• Weight: 21 lbs
• Dimensions (L x W x H): 10.25 x 6.75 x 9.00 inches
• Battery Group Size: Group 24
• Warranty: 6 years

Epoch Batteries 12V 100Ah Eco Series LiFePO4 Battery Documents:

Epoch Batteries 12V 100Ah Eco Series LiFePO4 Battery Safety Data Sheet (PDF)
