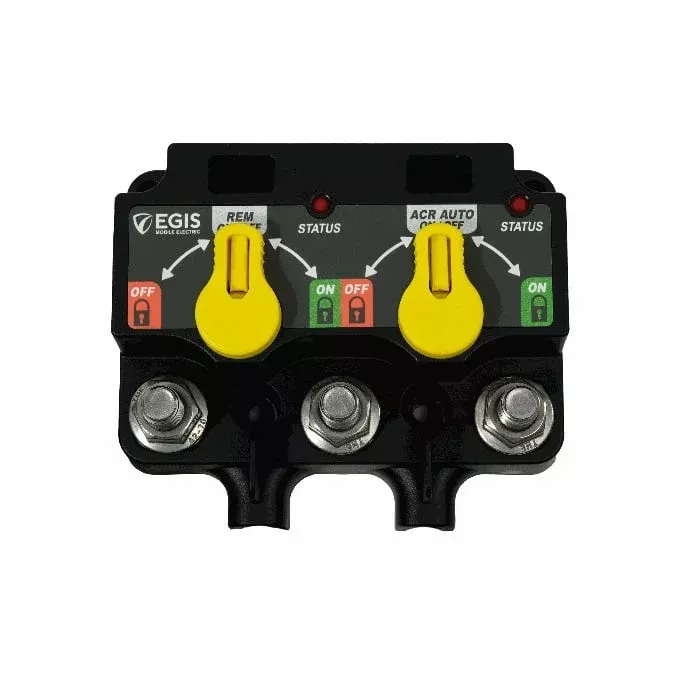

Egis XD Dual Flex 2 Automatic Charging Relay w/ Knobs Tinned Wires (8720-1550)

Description

The Egis XD Dual Flex 2 Automatic Charging Relay w/ Knobs Tinned Wires (8720-1550) from Nomadic Supply Company® delivers professional-grade dual charging relay functionality with intuitive manual control knobs and advanced bi-stable solenoid technology. This heavy-duty relay system provides exceptional 500-amp continuous current capacity while consuming 90-95% less off-state current than competitive solutions.The Egis XD Dual Flex 2 Automatic Charging Relay w/ Knobs Tinned Wires (8720-1550) features weatherproof IP67/IP6K9K sealed construction with integrated Gortex venting technology that eliminates moisture entry while regulating internal pressure. Stainless steel cable lug studs and self-locking flanged nuts provide corrosion-resistant connections, while the included protective cover prevents inadvertent shorts between terminals.Installation versatility comes standard with the Egis XD Dual Flex 2 Automatic Charging Relay w/ Knobs Tinned Wires (8720-1550), offering programmable dip switch configuration for custom applications and plug-and-play compatibility with legacy competitor products. The compact design reduces mounting space requirements by 35-75% compared to traditional electrical system layouts, making installation possible in the tightest spaces.

Egis XD Dual Flex 2 Automatic Charging Relay w/ Knobs Tinned Wires (8720-1550) Features:

• LED Status Display: Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED
• 3-Position Manual Override: Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition
• 40 Circuit Label Sheet Included: Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications
• Protective Cover Included: Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground
• Stainless Hardware: Corrosion is no issue with quality stainless steel studs and self locking flanged nuts
• Programmable: Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications
• Smaller Footprint: XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum
• Integrated Vent: High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments
• Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware
• Intuitive Manual Control: Simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability: Via simple dip switches allows each individual relay function significant flexibility for OEMs and installers
• 35-75% Reduction in Mounting Space & Product Weight: Via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts
• Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Egis XD Dual Flex 2 Automatic Charging Relay w/ Knobs Tinned Wires (8720-1550) Specifications:

• Total Continuous Current (Amps): 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range (V DC): 8 – 36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 Vdc, 3A @ 24 Vdc
