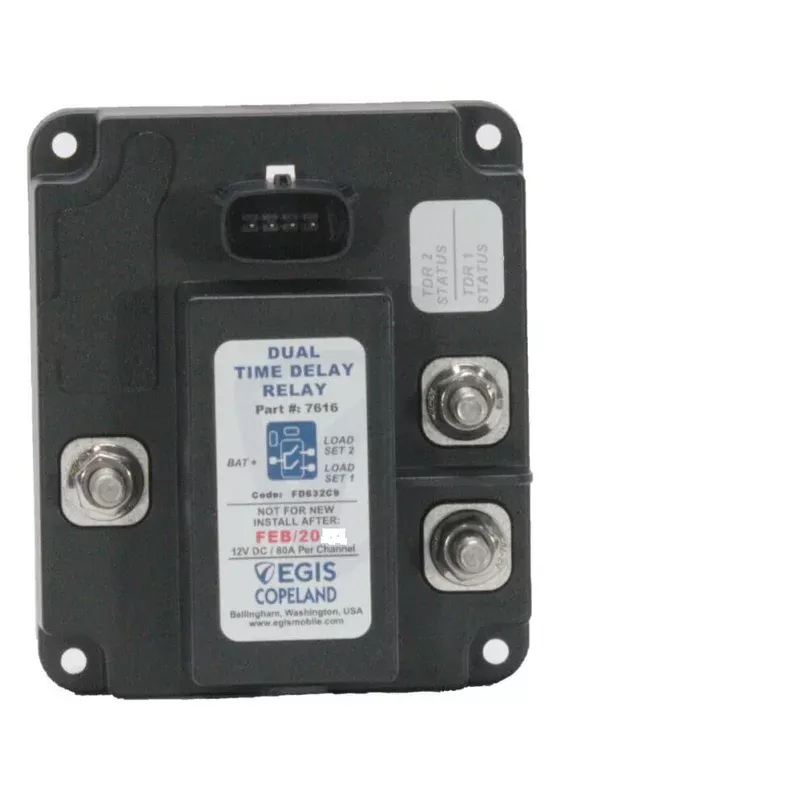

Egis TDR Series Dual Output 2x80A 12V Time Delay Relay (7616)

Egis TDR Series Dual Output 2x80A 12V Time Delay Relay (7616)

Original price was: $29.48.Current price is: $17.95.

51 in stock

SKU: ZWJAB558501 Category:

Description

The Egis TDR Series Dual Output 2x80A 12V Time Delay Relay (7616) from Nomadic Supply Company® delivers professional-grade power management with dual 80-amp outputs and programmable time delays from five seconds to four hours. This waterproof time delay relay features top-side DIP switches for field programming, LED diagnostics for system monitoring, and corrosion-resistant stainless steel hardware for reliable long-term operation.Engineered for demanding mobile applications, the Egis TDR Series Dual Output 2x80A 12V Time Delay Relay (7616) operates across a wide 8-18 VDC range while maintaining minimal standby current draw of just 1.5 mA. The integral Molex MX-150 connector ensures secure field connections, while optional EasyLink bus bars provide seamless integration with CT and RT series fuse blocks for streamlined installations.Built to withstand harsh environments, the Egis TDR Series Dual Output 2x80A 12V Time Delay Relay (7616) meets IP66 and IP6K9K waterproof standards along with ISO 8846 ignition protection requirements. The four-year manufacturer warranty and robust construction make this dual-output time delay relay an ideal choice for recreational vehicles, emergency vehicles, and commercial mobile applications requiring precise power control.

Egis TDR Series Dual Output 2x80A 12V Time Delay Relay (7616) Features:

  • EGIS 7616 TDR Series Dual Output Time Delay Relay 2x80A 12v: Model: 7616
  • TOP SIDE DIP SWITCHES: Accessible after installation, for programming time delay and determining active features. Protected by self-retained cover.
  • STAINLESS STEEL SELF-LOCKING HARDWARE: 100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
  • INTEGRAL I/O CONNECTOR: Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.
  • STANDARD AND OPTIONAL HARNESSES: Mating plug with 2 feet of ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths available
  • EASY INTEGRATION WITH CT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with CT series Fuse Blocks.
  • EASY INTEGRATION WITH RT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with RT series Fuse Blocks.
  • LED DIAGNOSTICS: Provides indication of pending relay OFF event due to under/over voltage or external off trigger. Output on/off status also provided.

Egis TDR Series Dual Output 2x80A 12V Time Delay Relay (7616) Specifications:

  • Maximum current Continuous: 80 Amps DC per Output (160 A Total)
  • Maximum current Intermittent: 120 Amps DC (5 Minutes) per Output
  • Off State Current Draw: 1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by)
  • Operating Voltage: 12 Vdc Nominal (8 – 18 Vdc)
  • Operating Temperature: -40 to 85 Deg C
  • Product Warranty: 4 Years from date of manufacturer
  • Time Delay Options: 5 Sec through 4 hours via Dip Switches
  • Environment Protection Standards: Waterproof to IP66. IP6K9K
  • Ignition Protection: ISO 8846
