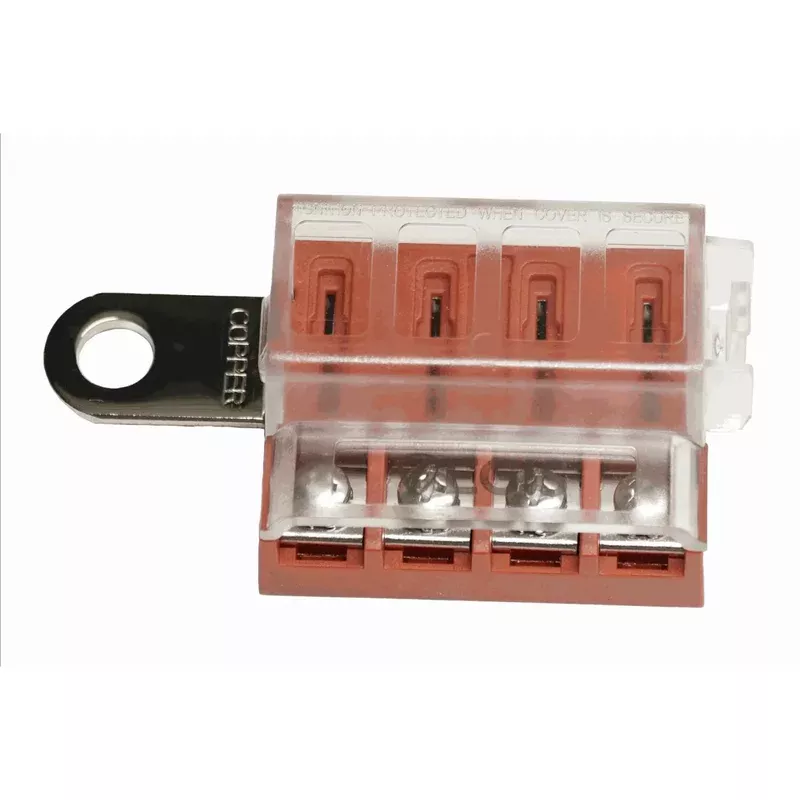

Egis RT 4 Circuit Battery Terminal Mount Fuse Block (8023)

Egis RT 4 Circuit Battery Terminal Mount Fuse Block (8023)

Original price was: $7.57.Current price is: $5.81.

34 in stock

SKU: GUOPX311817 Category:

Description

The Egis RT 4 Circuit Battery Terminal Mount Fuse Block (8023) from Nomadic Supply Company® delivers professional-grade circuit protection for marine and automotive applications where space constraints demand a compact solution. This battery terminal-mounted fuse block combines robust construction with convenient single-side wire entry, making installation seamless in the most challenging environments.Engineered for harsh environment applications, the Egis RT 4 Circuit Battery Terminal Mount Fuse Block (8023) features bullet-proof construction utilizing high-temperature materials and stainless steel self-locking hardware. The integrated latching protective cover includes label recesses for clear circuit identification, while the compact design accommodates ATO-style fuses from one through 40 amps per circuit.Meeting SAE circuit protection standards for thermal and short circuit events, the Egis RT 4 Circuit Battery Terminal Mount Fuse Block (8023) supports both 12V and 24V DC systems with a maximum voltage rating of 60 VDC. The stainless steel hardware ensures reliable mounting capability anywhere on your vehicle, while the included circuit identification labels enable quick diagnosis and maintenance.

Egis RT 4 Circuit Battery Terminal Mount Fuse Block (8023) Features:

  • Compact Battery Terminal Mount Design: Inline 4-position fuse block with single side wire entry optimized for tight installation spaces.
  • Harsh Environment Construction: Built with stainless steel self-locking hardware and optional weather-proof labels available in standard or customized configurations.
  • Branch Circuit Protection: Accepts ATO style fuses ranging from 1 through 40 Amps for comprehensive circuit protection.
  • Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allowing mounting anywhere on vehicle.
  • SAE Circuit Protection Standards: Supports SAE circuit protection standards for thermal and short circuit events.
  • Latching Protective Cover: Includes integrated label recesses for easy circuit and fuse identification.
  • Circuit Identification System: Circuit identification labels included for easy circuit and fuse diagnosis.

Egis RT 4 Circuit Battery Terminal Mount Fuse Block (8023) Includes:

  • 8023 4-Circuit Fuse Block
  • Circuit identification labels

Egis RT 4 Circuit Battery Terminal Mount Fuse Block (8023) Specifications:

  • Continuous Current Per Circuit: 30 Amps
  • Maximum Current (Entire Block): 100 Amps
  • Nominal Voltage: 12/24 VDC
  • Maximum Voltage: 60 VDC
  • Hardware Material: Stainless Steel
  • Input Terminal Size: M5-0.8
