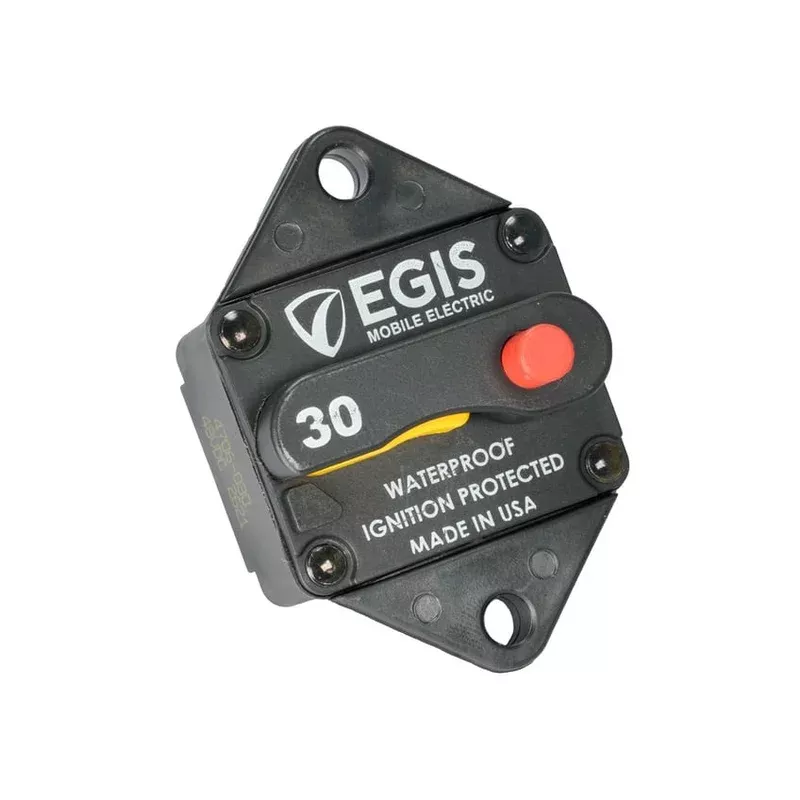

Egis 285-Series 30A Circuit Breaker Panel Mount (4706-030)

Description

The Egis 285-Series 30A Circuit Breaker Panel Mount (4706-030) from Nomadic Supply Company® delivers professional-grade circuit protection with high-visibility ON/OFF controls and robust construction designed for demanding mobile applications. This American-made circuit breaker combines exceptional durability with versatile mounting options to provide reliable electrical system protection in harsh environments.Engineered with a sealed design that achieves IP67 ingress protection rating, the Egis 285-Series 30A Circuit Breaker Panel Mount (4706-030) prevents dust and moisture penetration while maintaining high-temperature performance across all installation locations. The unit features stainless steel hardware with KEPS locking nuts that resist corrosion and vibration, ensuring dependable operation even in the most challenging conditions.Supporting continuous operation at 30 amperes with a maximum voltage rating of 48 VDC, the Egis 285-Series 30A Circuit Breaker Panel Mount (4706-030) from Nomadic Supply Company offers superior protection for 12V, 24V, 36V, and 48V electrical systems. With exceptional interrupt current capabilities and 6,000-cycle endurance rating, this circuit breaker provides long-term reliability backed by a comprehensive four-year warranty.

Egis 285-Series 30A Circuit Breaker Panel Mount (4706-030) Features:

• EGIS 285-Series 30 Amp Circuit Breaker Panel Mount: Model: 4706-030ON/OFF High Visibility Controls
• Sealed Protection: Sealed against dust and moisture penetration. High temp rated for all installation locations.Panel Mount Flange
• Mounting Options: Provides Rear / Front panel installation options.Stainless Steel Hardware / KEPS Locking Nuts
• High Voltage Rating: Easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses
• High Electrical Endurance: High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current: Safely protects circuits connected to large paralleled battery banks with significant available power
• Corrosion Resistance: Corrosion and vibration resistant for harsh environment applications
• American Manufacturing: Made in the USA of high quality components
• Warranty Coverage: 4 Year Warranty: We stand behind our product’s ability to meet your needs

Egis 285-Series 30A Circuit Breaker Panel Mount (4706-030) Specifications:

• CONTINUOUS CURRENT (AMPS): 30
• MAX VOLTAGE (VDC): 48
• CYCLING ENDURANCE: 6,000
• INTERRUPT CURRENT @ 16 VDC (AMPS): 5,000
• INTERRUPT CURRENT @ 28 VDC (AMPS): 3,000
• INGRESS PROTECTION RATING: IP67
