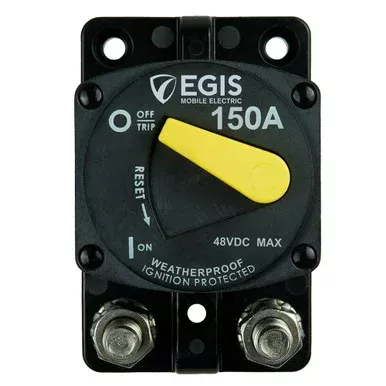

Egis 150A Surface Mount 87 Series Circuit Breaker

Egis 150A Surface Mount 87 Series Circuit Breaker

Original price was: $14.22.Current price is: $8.63.

42 in stock

SKU: ZWJAB536468 Category:

Description

Product

150A Surface Mount 87 Series Circuit BreakerThis 150A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications:

  • Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
  • Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

  • IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
  • High Voltage (48 Vdc) Rating – easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
  • High Electrical/Manual Switching Endurance delivers 2,000 cycles at full current
  • High Interrupt Current – safely protects circuits connected to large paralleled battery banks with significant available power
  • 4-Year Warranty – Egis stands behind its product’s ability to meet the user’s needs

Specifications:

  • Continuous Current Amps: 150
  • Max Voltage: 48
  • Cycling Endurance: 2,000
  • Interrupt Current @14 VDC (Amps): 5,000
  • Interrupt Current @28 VDC (Amps): 3,000
  • Ingress Protection Rating: IP66

Focal FeaturesON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Reinforced MountingEnsures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
