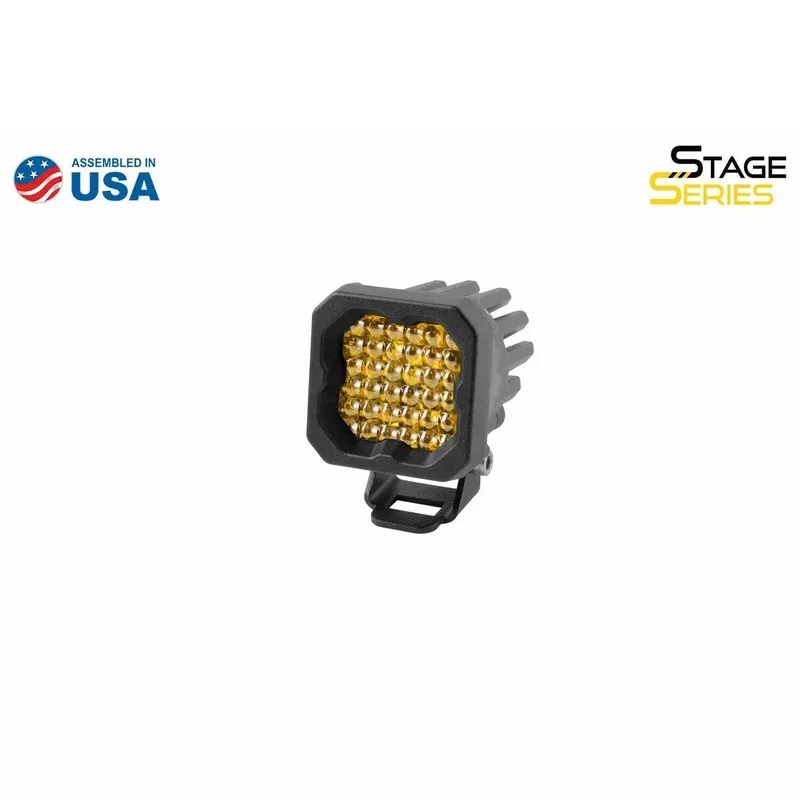

Diode Dynamics Stage Series C1 LED Pod Pro Yellow Flood Standard ABL (DD6463S)

Description

The Diode Dynamics Stage Series C1 LED Pod Pro Yellow Flood Standard ABL (DD6463S) from Nomadic Supply Company® is a compact Pro single-LED pod with a universal bracket for flexible positioning on any vehicle, built around custom-engineered TIR optics that deliver maximum light output in a form factor small enough to mount where larger pods simply won’t fit. It features 3000K selective yellow output, a Flood beam pattern, & an amber backlight — two functions from one ultra-compact package designed, torture-tested, & assembled in the USA.

Diode Dynamics Stage Series C1 LED Pod Pro Yellow Flood Standard ABL (DD6463S) Features:

• Custom TIR Optics. The SSC1’s custom-molded TIR optic serves as both the optical element & the outer lens — eliminating the ~10% light loss of standard outer-lens designs. Every lumen from the LED is collected & directed precisely on target, dramatically reducing glare while maximizing intensity versus reflector-based or basic-lens competitors.
• Flood Beam Pattern. The Flood beam uses pillow optics on the outer TIR lens to produce a true optically designed 50°×50° spread — uniform, even illumination without the hot spots of a diffused spotlight. Perfect for backup lights, scene lighting, truck beds, & roof racks.
• Yellow Output. Selective yellow at 3000K scatters less in rain, fog, & dust than white light, improving visibility where it matters most in poor weather while adding a distinctive look on or off road.
• Pro Power (20W). The Pro power level doubles the Sport’s wattage to 20 watts for demanding applications requiring maximum raw brightness. Note: The Pro Spot uses a slightly larger emitter than the Sport Spot, spreading output marginally more at the same beam designation.
• Standard Mount. The included universal bracket positions the SSC1 at virtually any angle on any surface. Compatible with optional flush mount bezels, GoPro-style mounts (adapter sold separately), & all Diode Dynamics vehicle-specific Stage Series hardware.
• Amber Backlight. The amber backlight fully illuminates the TIR optic when active — run it on a separate circuit for a warm accent that double-duties the SSC1 as both a main beam & a distinctive running or accent light.
• Interchangeable Lens. Diode Dynamics sells replacement lenses for the SSC1, allowing you to swap beam patterns or colors without replacing the entire pod — useful as your lighting needs evolve or when building out a more versatile setup.
• Proven Reliability. Every Stage Series C1 pod is tested from -40° to 185°F for long-term operation, along with vibration, moisture intrusion, & corrosion resistance — all to SAE standards used for factory automotive components. Built to last on-road and off.
• Simple Wiring. A custom-molded DT-type Deutsch-style connector with a 6″ pigtail & bare leads comes on every SSC1. Wire directly, use any off-shelf Deutsch DT-sized harness, or add an optional Diode Dynamics wiring harness.
• Quantity. This listing is for one (1) SSC1 pod. Additional pods, mounting hardware, & accessories are sold separately — all Diode Dynamics Stage Series C1 components are fully compatible.
• Made in the USA. Designed, torture-tested, & assembled domestically by Diode Dynamics — one of the most trusted names in performance automotive LED lighting for over a decade.

Diode Dynamics Stage Series C1 LED Pod Pro Yellow Flood Standard ABL (DD6463S) Specifications:

• Power: 20W per pod
• Color Temperature: 3000K selective yellow
• Beam Pattern: Flood (50° × 50°)
• Backlight Color: Amber
• Mounting: Standard mount with included universal bracket
• Connector: DT-type Deutsch-style, 6″ pigtail with bare leads
• Operating Temperature: -40°F to 185°F
• Quantity: 1 pod
• Part Number: DD6463S

Diode Dynamics Stage Series C1 LED Pod Pro Yellow Flood Standard ABL (DD6463S) Documents:

Stage Series C1 Info Guide (PDF)
