Dakota Lithium DL+ 24V 135Ah Dual Purpose LiFePO4 Trolling Motor Battery Set

Description

The Dakota Lithium DL+ 24V 135Ah Dual Purpose LiFePO4 Trolling Motor Battery Set from Nomadic Supply Company® pairs two DL+ 12V 135Ah self-heating LiFePO4 batteries in series to deliver 3,456Wh of 24V power — the largest dual-purpose battery set available for high-output 24V trolling motors and marine applications. Each battery combines 1,000 CCA cold cranking power with deep cycle endurance and Internal Even-Heat cold-charging protection, all in a compact Group 31 footprint and backed by an 11-year warranty.

Dakota Lithium DL+ 24V 135Ah Dual Purpose LiFePO4 Trolling Motor Battery Set Features:

• Maximum 24V Capacity. Two 135Ah batteries in series deliver 25.6V nominal and 3,456Wh total — the highest-capacity 24V trolling motor set available, for all-day high-thrust performance.
• Dual-Purpose DL+ Chemistry. Each battery provides 1,000 CCA engine-starting power alongside 135Ah of deep cycle capacity — one battery type for all marine power needs.
• Internal Even-Heat Technology. Built-in heating element warms cells before charging in cold temperatures, ensuring reliable performance and battery longevity year-round.
• 5,000 Charge Cycles. Each battery is rated for 5,000 cycles at ≥80% capacity — backed by an industry-leading 11-year manufacturer warranty.
• Compact Group 31 Form Factor. Fits standard Group 31 battery trays at 13″ × 6.8″ × 8.7″ each — a direct drop-in upgrade from AGM or lead-acid Group 31 batteries.
• 60% Lighter Per Battery. Each battery weighs 27.2 lbs (54.4 lbs total) versus a typical 65 lb lead-acid Group 31 — dramatically reducing boat weight and improving handling.
• Active BMS Protection. Cell balancing, LVC, HVC, and short-circuit protection across both batteries for safe, unattended operation.

Dakota Lithium DL+ 24V 135Ah Dual Purpose LiFePO4 Trolling Motor Battery Set Includes:

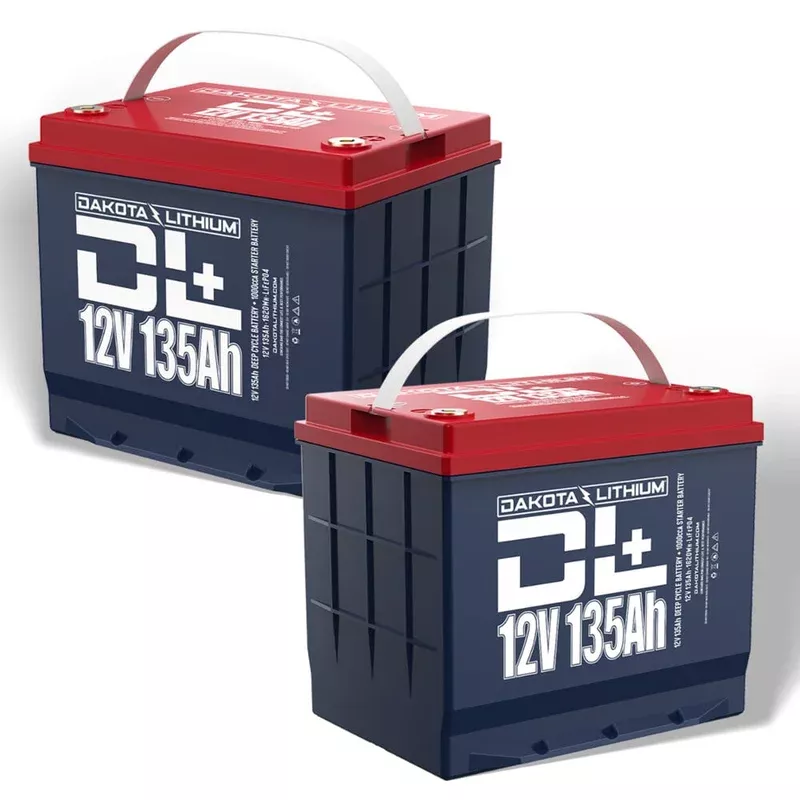

• 2 × Dakota Lithium DL+ 12V 135Ah LiFePO4 Battery (to be wired in series for 24V)

Dakota Lithium DL+ 24V 135Ah Dual Purpose LiFePO4 Trolling Motor Battery Set Specifications:

• Voltage: 25.6V nominal (two 12.8V batteries wired in series)
• Capacity: 135Ah per battery
• Energy: 1,728Wh per battery (3,456Wh total)
• CCA: 1,000 CCA per battery
• Weight (each): 27.2 lbs
• Weight (set): 54.4 lbs total
• Dimensions (each): 13″ L × 6.8″ W × 8.7″ H — Group 31 equivalent
• Cold Charging Protection: Internal Even-Heat Technology
• Lifecycles: 5,000 cycles at ≥80% capacity
• BMS Protection: Cell balancing, LVC, HVC, short-circuit protection
• Warranty: 11 years (manufacturer defect)
• Manufacturer: Dakota Lithium
• SKU / MPN: PID12V135AHPLUSX2TMB

Dakota Lithium DL+ 24V 135Ah Dual Purpose LiFePO4 Trolling Motor Battery Set Documents:

Dakota Lithium DL+ 24V 135Ah Dual Purpose LiFePO4 Trolling Motor Battery Set Owner’s Manual
