Dakota Lithium 24V 100Ah Deep Cycle LiFePO4 Trolling Motor Battery Set

Description

The Dakota Lithium 24V 100Ah Deep Cycle LiFePO4 Trolling Motor Battery Set from Nomadic Supply Company® pairs two 12V 100Ah LiFePO4 batteries in series to deliver a full day of all-out 24V trolling motor power — 2,560Wh total, 60% lighter than equivalent lead-acid, and rated for 5,000 charge cycles so it outlasts a standard SLA battery by a decade. With a flat discharge curve that holds consistent voltage from the first cast to the last, an Internal Even-Heat cold-charging system for winter fishing, and an industry-leading 11-year manufacturer warranty, this set is built to perform through years of hard use on the water.

Dakota Lithium 24V 100Ah Deep Cycle LiFePO4 Trolling Motor Battery Set Features:

• Full Day of 24V Power. Two 100Ah batteries wired in series deliver 25.6V nominal voltage — enough to power large 24V trolling motors from morning to night without voltage sag.
• 60% Lighter Than Lead-Acid. Each battery weighs just 27.55 lbs (55 lbs for the set) — a massive weight reduction that improves boat handling and lowers the center of gravity.
• 5,000 Cycle Lifespan. Rated to maintain up to 80% capacity for 5,000 charge cycles — 10× the lifespan of a typical SLA battery’s 500 cycles.
• Consistent Voltage Output. Flat discharge curve provides a 70% higher effective capacity rating than SLA — full trolling motor thrust for the entire run time, not just the first hour.
• Internal Even-Heat Technology. Gently warms cells before accepting charge current in cold temperatures, protecting battery health and maintaining performance in winter conditions.
• Active BMS Protection. Built-in battery management system handles cell balancing, low-voltage cutoff, high-voltage cutoff, and short-circuit protection automatically.
• 11-Year Manufacturer Warranty. Backed by Dakota Lithium’s industry-leading 11-year warranty — more than twice the coverage of most competing lithium batteries.

Dakota Lithium 24V 100Ah Deep Cycle LiFePO4 Trolling Motor Battery Set Includes:

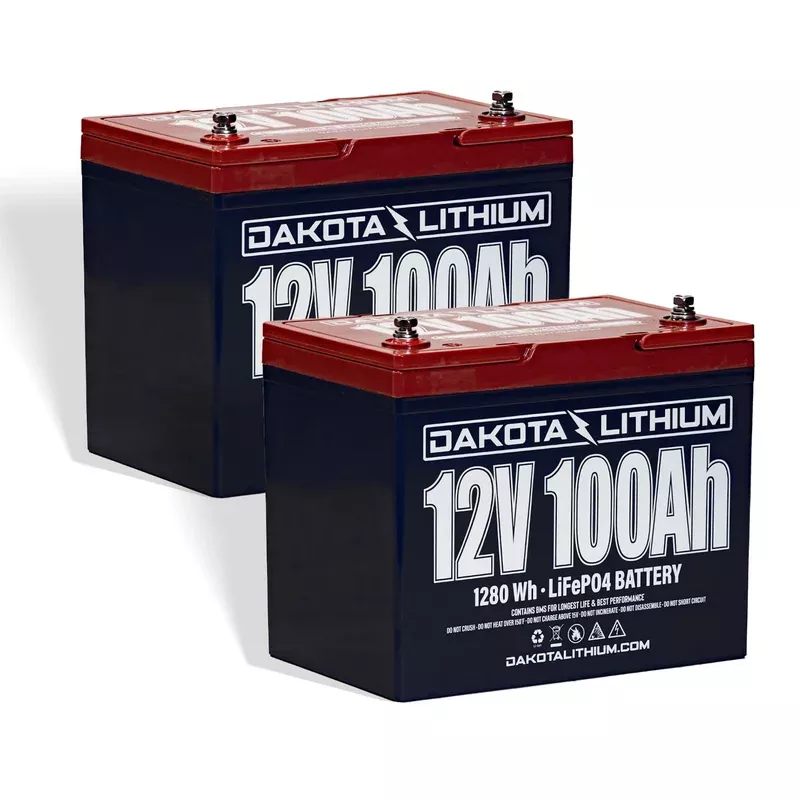

• 2 × Dakota Lithium 12V 100Ah LiFePO4 Deep Cycle Battery (to be wired in series for 24V)

Dakota Lithium 24V 100Ah Deep Cycle LiFePO4 Trolling Motor Battery Set Specifications:

• Voltage: 25.6V nominal (two 12.8V batteries wired in series)
• Capacity: 100Ah per battery
• Energy: 1,280Wh per battery (2,560Wh total set)
• Weight (each): 27.55 lbs (12.5 kg) — 60% lighter than equivalent SLA
• Weight (set): 55 lbs total
• Dimensions (each): 10.23″ L × 6.60″ W × 8.66″ H (260mm × 169mm × 215mm) — Group 24 equivalent
• Terminals: F12 screw-in posts; max torque 15 ft-lb
• Discharge: 100A max continuous, 200A max pulse (10 sec)
• Charge: 50A max per battery, 14V max recommended, 15V max
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Lifecycles: Up to 5,000 cycles at ≥80% capacity
• BMS Protection: Cell balancing, LVC, HVC, short-circuit protection
• Cold Charging Protection: Internal Even-Heat Technology
• Warranty: 11 years (manufacturer defect)
• Manufacturer: Dakota Lithium
• SKU / MPN: PID12V100AHX2TMB

Dakota Lithium 24V 100Ah Deep Cycle LiFePO4 Trolling Motor Battery Set Documents:

Dakota Lithium 24V 100Ah Deep Cycle LiFePO4 Trolling Motor Battery Set Owner’s Manual
