Boat Breaker Panel 2070106 | 10 1/4 x 10 1/4 Inch Gray Faux Woodgrain

Description

Boat part number 1100462 is a new breaker panel, part manufacturer unavailable, part number 2070106 .

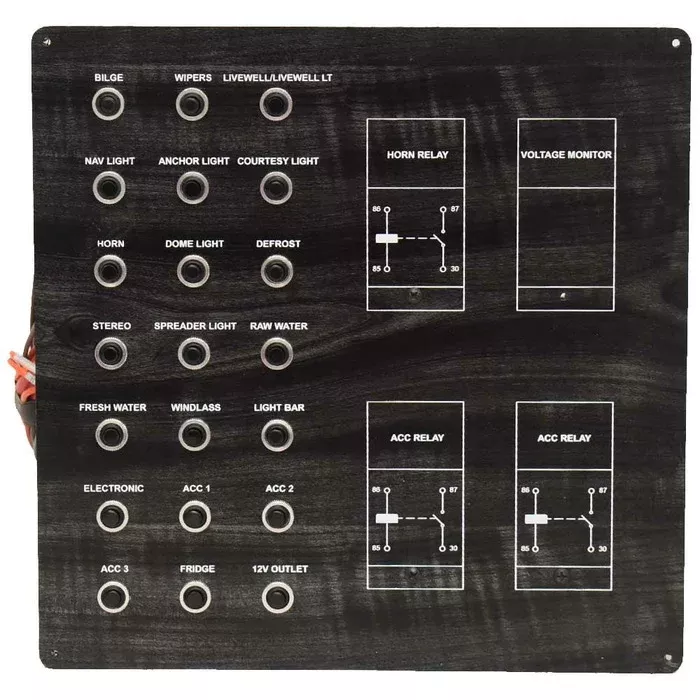

This breaker panel is constructed out of gray faux woodgrain colored plastic with a matte finish. It measures approximately 10 1/4″ W x 10 1/4″ H overall and has (4) 1/8″ Dia. mounting holes.

Features the following push-to-reset circuit breakers:

• Bilge | 4 Amp
• Wipers | 10 Amp
• Livewell/Livewell LT | 5 Amp
• Navigation Light | 5 Amp
• Anchor Light | 5 Amp
• Courtesy Light | 10 Amp
• Horn | 5 Amp
• Dome Light | 10 Amp
• Defrost | 10 Amp
• Stereo | 15 Amp
• Spreader Light | 10 Amp
• Raw Water | 8 Amp
• Fresh Water | 8 Amp
• Windlass | 5 Amp
• Light Bar | 10 Amp
• Electronic | 10 Amp
• Accessory 1 | 10 Amp
• Accessory 2 | 20 Amp
• Accessory 3 | 10 Amp
• Fridge | 5 Amp
• 12V Outlet | 10 Amp

Also features diagrams for horn relay and accessory relays.

Features the following connections:

• (2) 12-pin female Deutsch
• (2) 1-pin female Deutsch
• (1) 1-pin female Battery
• (1) 2-pin female Deutsch

Note: Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.

Specifications:

• Boat Manufacturer: Unavailable
• Part Number: 2070106
• Part Manufacturer: Unavailable
• Material: Plastic
• Color: Gray Faux Woodgrain
• Finish: Matte
• Overall Dimensions: 10 1/4″ W x 10 1/4″ H
• Mounts: (4) 1/8″ Dia. mounting holes
