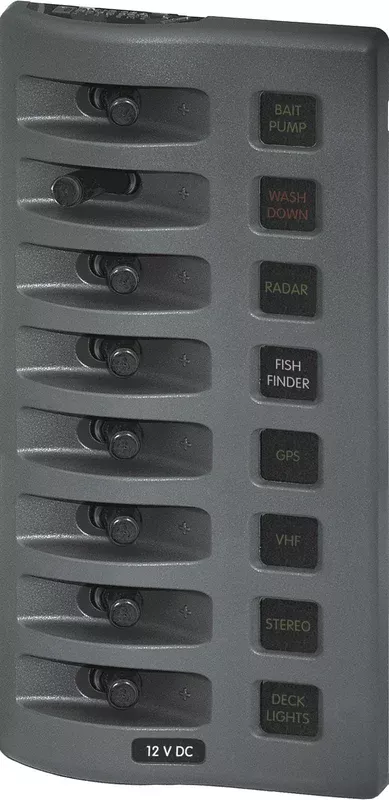

Name: Blue Sea Weather Deck Panel 12v 8 Gang Fuse Panel
Brand: durablemarinebattery.com
SKU: WODTB475416
Price: 19.49 USD
Availability: InStock

Blue Sea Weather Deck Panel 12v 8 Gang Fuse Panel

95 in stock

SKU: WODTB475416 Category: hot sale

Description

xBlue Sea Systems Weather Deck 12V DC Waterproof Fuse Panel – Gray 8 PositionsModel: 4308-BSS

Panel front rated IP67 when properly mounted with watertight mounting gasket
IP67 — protected against immersion up to 1 meter for 30 minutes
Designed for flybridge and open cockpit applications
Independent label backlighting circuit for remote switching and dimming
Available in 2, 4, 6, and 8 circuit models
Each panel can be mounted in four different orientations
Integrated ATO/ATC fuse based circuit protection
Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications

Weatherproof	Waterproof
Positions	8
Nominal Voltage	12vDC
Circuit Protection	Fuse
Maximum Amperage	15A @ 12V DC (per circuit)
Panel Cumulative Rating	100A
Backlit Label	Bicolored LED
Backlighting Amperage	10mA /Illuminated Circuit
Backlighting Voltage	12V DC
Material	Reinforced Polycarbonate
Dimensions H x W x D	7.7in x 3.88in x 2.50in
