Description

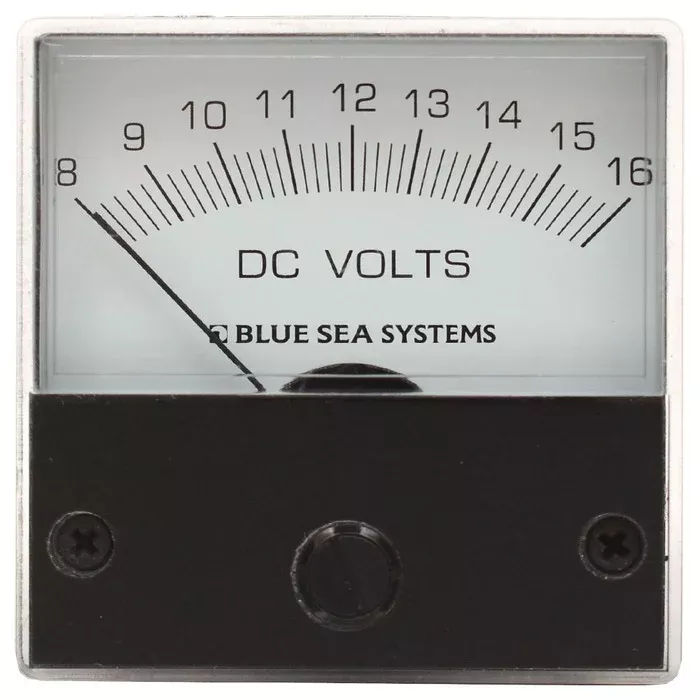

Boat part number 1119479 is a new DC voltmeter gauge from Blue Sea Systems, part number 8003 .
This DC voltmeter is constructed out of black plastic with a silver bezel. It features a flat lens and a backlit 8-16 volt expanded scale. It measures approximately 2″ L x 2″ H x 1 3/4″ D overall and requires an approximate 2″ Dia. cutout. It has (2) screw terminal connections and (3) wire leads and is intended for 12V DC systems. It mounts via (4) 1/8″ Dia. threaded bolts (hardware included).
Specifications:
- Part Manufacturer: Blue Sea Systems
- Part Number: 8003
- Material: Plastic
- Color: Black
- Electrical: 12V DC
- Overall Dimensions: 2″ L x 2″ H x 1 3/4″ D
- Cutout: 2″ Dia.
- Mounts: (4) 1/8″ Dia. Threaded Bolts
- Connection: (2) Screw Terminals / (3) Wire Leads
