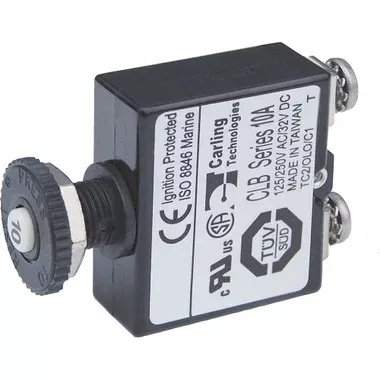

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker – 10 Amps [2132]

Description

Push Button Reset Only Screw Terminal Circuit Breaker – 10 Amps

Features:

• Branch circuit breakers (can also be used for 24-hour circuit protection)
• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
• Compact design enables high density circuit protection configurations
• Push-to-reset operation
• “Trip Free” design cannot be held “ON” during fault current condition
• Ignition protected – Safe for installation aboard gasoline powered boats
• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

Specifications:

• Amperage:10A
• Maximum Voltage: 32V DC
• Mounting: Panel Mount 3/8-27 UNS
• Circuit Breaker Type: Thermal trip, manual push-button reset only
• Terminal Type: 8 Screw
• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
• Minimum Operating Temperature: -10° C
• Maximum Operating Temperature: 60° C
• Screw Terminal Torque: 6 in-lb (0.68 Nm)
• Weight: 0.09lb (0.04 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
  • Amperage: 10a
  • Box Dimensions: 1″H x 3″W x 4″L WT: 0.3 lbs
  • UPC: 632085021320
