Description

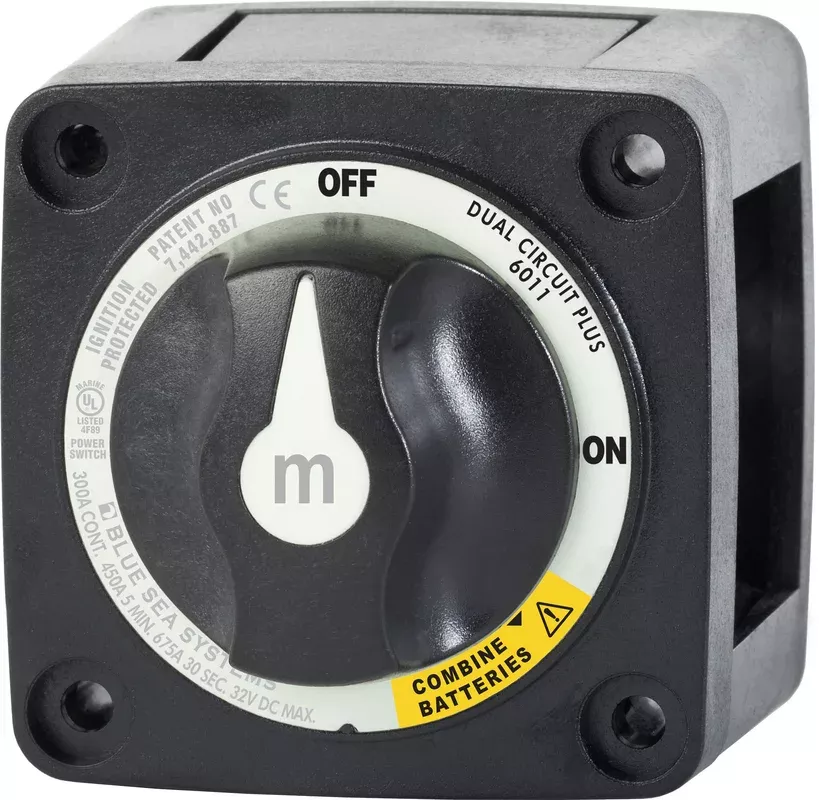

xBlue Sea Systems m-Series Mini Dual Circuit Plus Battery Switch – BlackModel: 6011200-BSS
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8″ (M10) ring terminals
- 7/8″ (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Isolating cover with snap-on sections protects rear contacts
- Case design allows surface or rear panel mounting
- Waterproof — rated IP66 from water projected in powerful jets
- One-piece stainless flange nuts ensure safe and secure connections
- Breakout tabs allow wire access in any direction
- Make before break contact design allows switching between battery banks without power interruption
Simultaneously switches two isolated battery banks or combines battery banks to all loadsSpecifications
| Switch Type | Dual Circuit Plus |
| Color | Black |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32vDC |
| Stud Size | 3/8″ |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating 30 sec | 675A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm) |
| Mounting Holes | Accept 10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8″ – 16 (M10) |
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.Brand: Blue Sea SystemsUPC: 632085601126Model Number: 6011200-BSSWeight: 0.800000
