Sale!

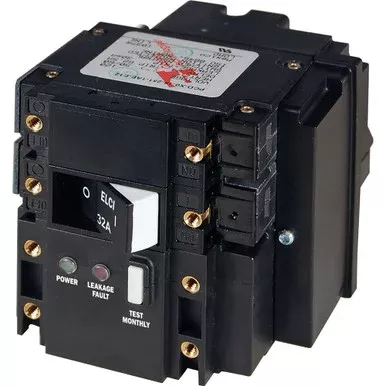

Blue Sea C-Series ELCI Main Circuit Breaker – Double Pole 230V AC 32A

Blue Sea C-Series ELCI Main Circuit Breaker – Double Pole 230V AC 32A

Original price was: $112.10.Current price is: $79.25.

36 in stock

SKU: GUOPX291027 Category:

Description

Product

C-Series ELCI Main Circuit Breaker – Double Pole 230V AC 32AFeatures:

  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 32A
  • Actuator Style: Flat actuator
  • Poles: 2
  • Ignition Protected: Yes
  • Maximum Voltage: 240V AC per pole
  • Circuit Breaker Type: Magnetic Hydraulic – trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Maximum Operating Temperature: 66 degrees C
  • Leakage Trip Amps: 30mA
  • Mounting Screw: 6-32 Stainless Steel
  • Mounting Screw Torque: 6in-lb (0.68 Nm)
  • Switching Cycles: 10000
  • Weight: 1.05 lbs (0.48kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
