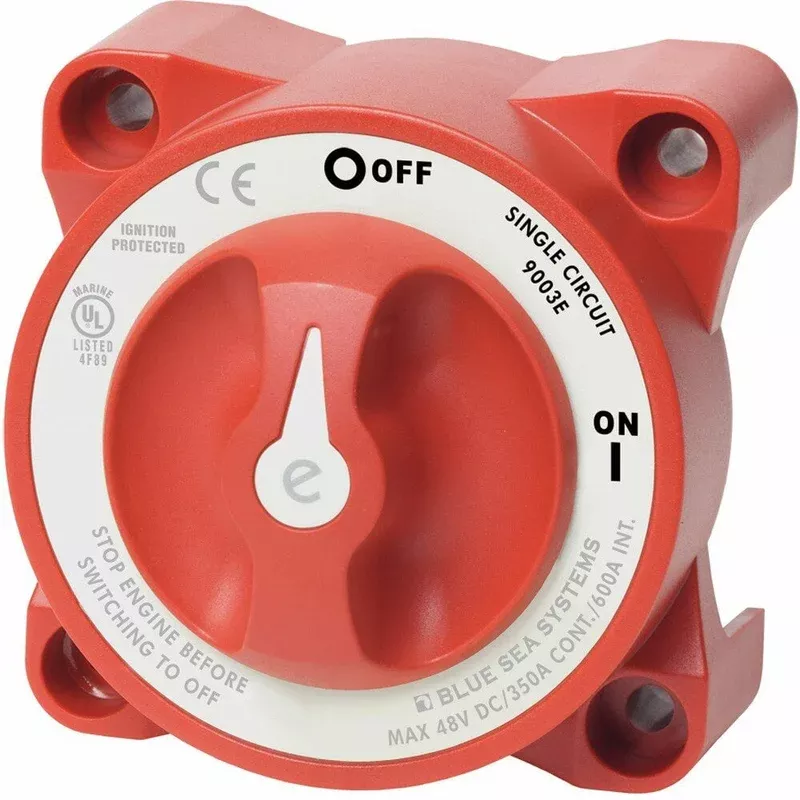

Blue Sea 9003E e-Series Battery Switch Single Circuit ON/OFF (9003E-BSS)

Description

The Blue Sea 9003e e-Series Battery Switch Single Circuit ON/OFF with AFDfromNomadic Supply Company® switches isolated battery banks to all loads or combines battery banks to all loads.

Blue Sea 9003E e-Series Battery Switch Single Circuit ON/OFF (9003E-BSS) Features:

• Make-before-break contact design allows switching between battery banks without power interruption
• Switches battery banks in applications requiring high power output, reliability, and low heat generation
• 350A continuous rating for inboard gasoline or diesel engines
• Ignition protected safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts up to 4/0 AWG battery cables
• Terminal studs accept 3/8″ (M10) ring terminals
• 7/8″ stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• One-piece stainless steel flange nuts ensure safe and secure connections
• Fits most standard Perko and Guest battery switch hole patterns
• Blue Sea Systems stands behind its products for as long as you own them

Blue Sea 9003E e-Series Battery Switch Single Circuit ON/OFF (9003E-BSS) Specifications:

• Switch type: Selector 4 Position
• Color: Red
• Cranking rating (30 sec.): 1200A
• Intermittent rating (5 min.): 600A per circuit
• Continuous rating: 350A
• Maximum operating voltage: 32V DC
• Regulatory:
  • Meets UL 1500 and SAE J1171 external ignition protection requirements
  • Ingress Protection IP66 – dustproof/protected against heavy seas and jets of water from all directions
  • CE marked, ISO 8846, UL Listed – UL 1107 electric power switches
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
