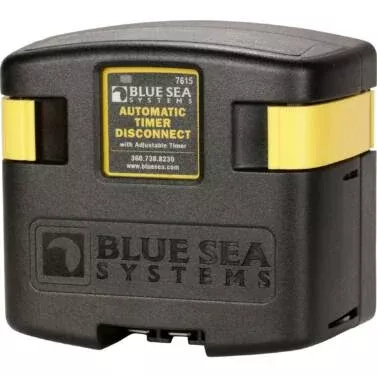

Blue Sea 7615 Marine ATD Automatic Timer Disconnect

Description

Blue Sea 7615 Marine ATD Automatic Timer Disconnect

Features

• Can be configured to be used as one of the following battery saving products:
• Timer Disconnect
• 12V signal triggers relay to connect battery power to devices
• When signal is removed the timer is activated and will disconnect devices after a preset time
• Timer ranges from 15 minutes to 4 hours
• Low Voltage Disconnect
• 12V signal triggers relay to connect battery power to devices.
• After 12V signal is removed, device senses low battery voltage and automatically disconnects devices.
• Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power
• Automatic Charging Relay
• Automatically combines two batteries when charging, and isolates them when discharging
• Single side sensing design only monitors the voltage of the start battery
• Ideal for auxiliary batteries that are AGM or significantly larger than the start battery
• Solenoid
• 12V signal will connect or disconnect relay without any time delay

Specifications

• Nominal Voltage: 12V DC
• Amperage Operating Current: 175mA (closed), 4mA (open)
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 120A
• Intermittent Rating: 210A (5 Min)
• Cable Size to Meet Ratings: 1 AWG
• Charge Sense Connect: 13.0V (3 sec)
• Charge Sense Disconnect: 12.75V (10 sec)
• Disconnect Time: 5 sec, 15 min, 30 min, 1 hr, 1.5 hr, 2hr, or 4hr
• Input Voltage Range: 9.5-16V
• Low Voltage Disconnect: 11.0V (10 sec), 11.5V (10 sec), 12.0V (10 sec)
• Maximum Cable Size: 1/0 AWG
• Stud Material: Tinned Copper
• Terminal Ring Diameter Clearance: 1.12in (28.45 mm)
• Terminal Stud Size: 3/8″-16 (M10)
• Over Voltage Lockout: 16.0V (5 sec)
• Weight: 1.25lb (0.57 kg)
